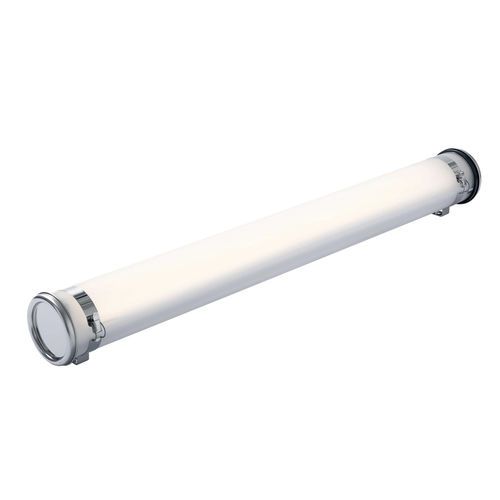

Outdoor lighting PASCAL 133

for shipsfor terminalsLED

Technical key features Technology LED Max. temp. 30 °C Light output 5550 to 11100 lm Key features Plug&Play-installation by disconnectable Plug Suitable for repeated switching on and off Long maintenance intervals Durable and maintainable luminaire Resistant to external UV-rays Very good resistance to oils and hydrocarbons Technical data Light source • High efficiency LED modules (155 lm/W) • 50 000 h L80/B50 at max. operating temperature • Replaceable LED modules • CRI > 80 Optic • Satin Diffuser to minimise glare Control gear Constant Current Driver (non-dimmable) Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -20 °C to +30 °C Connection Disconnectable Plug Ø cable 8–10 mm (3 × 1,5 mm²) Fixing 2 Stainless Steel fixing straps with Spring Clip Method of construction • Housing in one piece with reinforced imperviousness • Patented SLIDE opening system
