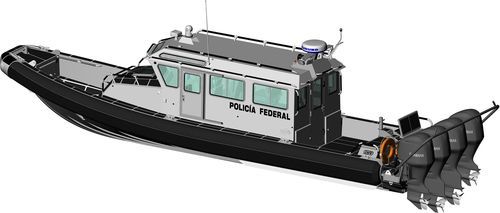

Patrol boat SAFE 38

outboardaluminum

Overview
The SAFE 3810 is a 12 m (39'5") full-cabin outboard vessel designed for demanding maritime operations. Aluminium 5086 hull construction and SAFE XDR-1 reinforced foam collar provide high survivability, stability and predictable behaviour in adverse sea states, suitable for patrol, rescue and workboat roles.

Key features

• 5086 aluminium bottom plate with exclusive stringer system and angled transverse framing
• Pressure-tested airtight hull and reinforced keel beaching plate
• SAFE XDR-1 patented 100% foam reinforced collar
• Self-bailing decks, performance lifting strakes and wings below collars for lift and maneuverability
• Comprehensive set of onboard options for propulsion, electronics and crew comfort

Hull & Deck

• 5/16" – 5086 bottom plate with SAFE Boats exclusive stringer system with angled transverse framing
• Pressure tested air tight hull
• Reinforced keel beaching plate
• Stepped transom with speed shoe in bottom plate
• Performance wings below collars for increased lift and stabilization while maneuvering
• Fully welded performance lifting strakes
• Self bailing decks with high volume scupper drains
• Forward cockpit with self draining decks
• Bow storage/anchor locker with aft facing door
• Dual aft rigging locker system with topside access
• Transom inspection hatch
• Sacrificial hull anode(s)

Super Structure

• Cabin with aft, port and starboard weather tight doors
• Cuddy with bench seating and weather tight access hatch
• Sliding side aft windows and overhead tinted spotter windows
• Safety glass in all windows and overhead cuddy ceiling hatch
• Swing down radar pod and safety hand/grab rail system with rubberized wrap

Console & Dash

• Starboard side helm
• OHIP – Over Head Instrument Panel for navigational and mission equipment

Seating, Seat Storage & Upholstery

• Bentley shock‑mitigating seats (positions 1–4) with belts and fore/aft & height adjustments
• Port and starboard aft jump seats/storage boxes with upholstered cushions
• Port and starboard cuddy benches with upholstered cushions

Collar System

• Patented 100% foam SAFE XDR-1 Extreme Duty Reinforced Collar System with black rubstrake
• Available collar colours: black, blue, gray, orange, green, red

Coatings, Coverings & Lettering

• Black non-skid decks and gunnels; rubberized dash skid
• Marine grade carpet, insulation and upholstered headliner
• Black mesh snap covers on interior storage openings and rubberized deck matting on walking surfaces

Towing, Lifting & Attachment Points

• Eight 10" cast aluminium weld-on cleats
• Custom weld-on pick eyes with stainless inserts and weld-on bow eye with triple SS inserts
• Weld-on transom tie downs, fore and aft tow posts with SS cross pin
• Motor guard/tow line guide

Electrical System & Power Generation

• 12 VDC house battery system with marine grade battery and switch
• Marine grade breaker system and switches
• Five 12 VDC power receptacles (gauge pod, dash, arch)
• Self-parking intermittent windshield wiper system with washer

Lighting

• LED navigation lights (running and anchor)
• Independently controlled interior/exterior dimmable LED walkway lights
• Red/white dome lights in cabin and cuddy; multiple flood lights and rechargeable flashlight

Electronics, Navigation & Communication

• Magnetic compass with dimmable back-lighting
• Navigation horn

Crew Comfort

• Two ventilation fans; seating and storage designed for extended missions

Safety, Rescue & Diving Equipment

• Three fire extinguishers and life ring mount
• Cabin dewatering pump (1100 GPH) and CO detector(s)
• Telescoping swim ladder mounted on outboard bracket

Fuel System

• 400-gallon fuel tank with formed 1/4" – 5086 bottom

Options

• Propulsion: engines, rigging, power assist steering upgrade
• Trailering & handling: trailer options, rolling ship yard cradle
• Configuration: covers, personnel recovery cut-outs, drop bow, bimini, locker systems, additional/upgraded shock-mitigating seats, paint options
• Electronics: navigation packages, sonar, thermal/low-light cameras, AIS, VHF/UHF, intercoms, EPIRB, CBRNE detection, law enforcement lighting, searchlights
• Outfit & safety: safety kits, docking/anchor kits, PFDs, documentation and drawing packages
• Miscellaneous: dive fittings, tow posts, firefighting pump systems, davit/electric winch
• Crew comfort upgrades: generator, AC, heater, shore power, galley, head, washdown

Technical specifications

• Fuel Cap (gal): 400
• Max Range (NM): 320 with 10% reserve
• Length Overall (LOA): 39'-5" / 12 m
• Beam Overall (BOA): 10' / 3.1 m
• Deadrise at Transom: 25°
• Draft (engine trimmed up): 26" / 0.66 m
• Height on Trailer – Road Transport: 12'-0"
• Length on Trailer – Road Transport: 51'
• Max HP: 1350
• Top Speed: 60 knots
• Light Ship Weight: 14,600 lbs
• Operational Weight: 17,040 lbs
• Weight on Trailer: 21,040 lbs
• Maximum Payload: 3,970 lbs
