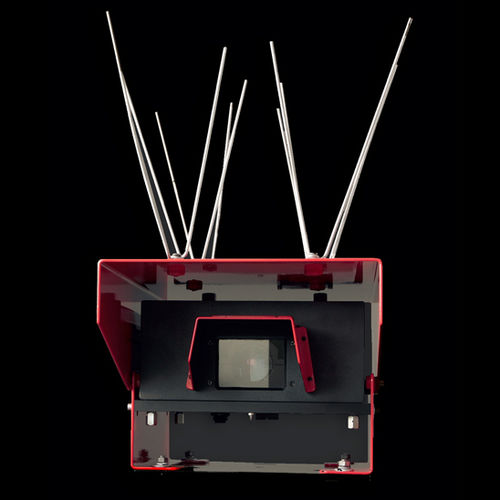

Signaling floodlight E8592
marineLED

signaling floodlight
signaling floodlight
Add to favorites
Compare this product


Characteristics

Type
signaling
Application domain
marine
Light source
LED
Light intensity

40,000 cd

Power supply

Max.: 24 V

Min.: 10 V

Height

250 mm
(10 in)

Length

322 mm
(13 in)

Width

248 mm
(10 in)

Description

LED Projector sector light signal, up to 17 M range The E8592 is a high-performance, power efficient marine LED Projector sector lantern with composite beam of three signal colours featuring nearly identical luminous intensities. Sector configuration is tailored to customer requirements at the factory. All E859X Lanterns provide factory configured Day and Night mode luminous intensities selectable by a single digital input, supporting fast PWM control necessary for generating navigational signals at reduced intensities, as well as for utilizing Fixed-and-Flashing (FFL) rhythmic characters or Slow Flash Front (SFF). The field proven E8592 design can be offered with optional Opposite-Isophase sector signal control for producing rhythmic characters reducing the latency of spatial awareness update for the mariners: the white sector signal is active during the eclipse in the coloured sectors and vice versa, resulting in immediate awareness about leaving the white sector without the usual delay caused by the common eclipse. A two-tiered design with two additional sectors providing alternating flashing on sector boundaries is available as E8596. E8592 features: Power efficient Day/Night light signalling system for port entry lights or leading line systems replacement IALA colours Red, Green, White with application-specific luminous intensities nearly uniform up to 40 kcd Factory-customized sector configuration with precision of ≤ 0.05° (3’) Sector with 3° to 6° with total subtense of approximately 13° Vertical divergence either 1.8° or 3°
