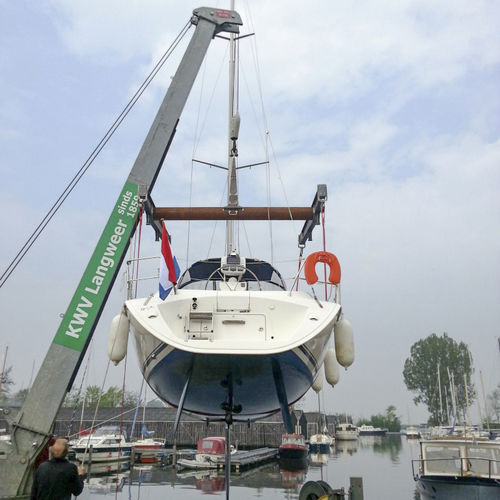

Marina crane YCR 20
for yachtsboompivoting jib

marina crane
marina crane
marina crane
marina crane
Add to favorites
Compare this product


Characteristics

Application domain
for marinas, for yachts
Type
boom, pivoting jib
Other characteristics
boat handling, custom
Lifting capacity

20 t
(22 us ton)

Max.: 20 t
(22 us ton)

Lifting height

Max.: 16 m
(52'05" )

Outreach

Max.: 11 m
(36'01" )

Hoisting speed empty

0.2 m/s
(0.7 ft/s)

Hoisting speed with load

0.1 m/s
(0.3 ft/s)

Overall height

14.3 m
(46'10" )

Overall width

4.2 m
(13'09" )

Description

A slew crane is the alternative to a boat hoist. A slew crane itself takes up much less space. It also requires a much lower investment, in foundation, pavement and in the product itself. The combination of a column slewing crane with a Roodberg transport trailer ensures full utilisation of the available space. The crane is fully electrically powered and therefore the 100% environmentally friendly alternative. Ultimate perfection in its class The operation of the crane is easy to learn, especially with the ergonomically designed radio remote control. The crane can rotate an unlimited 360 degrees, which makes it possible to position a boat in any desired location. Because only one person can take a boat in and out of the water with the crane, you are more flexible. Durability, long life span and low maintenance costs are an important principle for all Roodberg products! We achieve this by: applying high quality materials, think of standard, stainless steel guide strips, hot dip galvanised fasteners, the use of stainless steel electrical cabinets with stand heating, a very high quality two-component paint system where hollow spaces are sealed and parts are provided with curves for optimal edge coverage. Due to its larger radius, the YCR has a much greater reach than a standard crane. This means that boats can be placed further away from the crane and several boats can be positioned side by side within the turning range of the crane. Roodberg can provide a unique spreader bar for the YCR that can even be used to lift yachts with a standing mast.
