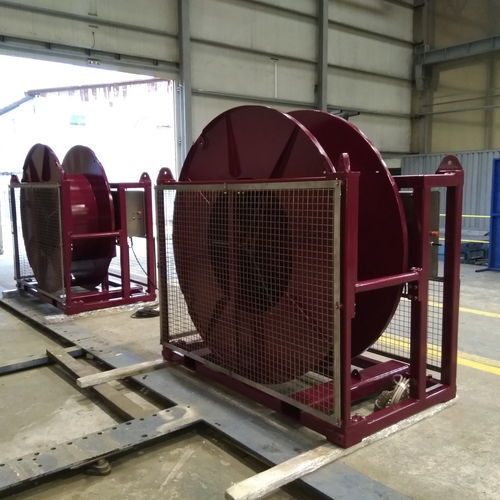

Ship winch Array

for shipyardselectric drivesingle-drum

0.3Te - 200m Datasheet Weight without cable 1620 Kg Cable diameter 48 mm Capacity 200 m Line speed - First Layer 32 m/min Line speed - Top Layer 42 m/min WLL - First Layer 300 Kg WLL - Top Layer 229 Kg Brake Minimum 1.5 WLL - First Layer 450 Kg Brake Minimum 1.5 WLL - Top Layer 344 Kg Supply Required 380-440V-3 Ph- 50/60 Hz Winch Electrical Motor 2.2 Kw IP56 IE3 Local Proportional Control Bi-directionally proportional joystick and speed control potentiometer Level wind N/A Dimensions (LxWxH) Footprint 2165 x 1258 x 2080 mm 2120 x 1170 mm Slip ring Designed to accept Focal 180 or similar not within scope of supply Frame detailsCrash frame with guards, fork lifting pockets and certified lifting lugs Principle of Operation: The winch barrel is mounted directly onto the outer face of a vertically mounted slew-ring bearing. The inner ring of the bearing has been mounted onto the frame support. The winch barrel is driven directly from a Brevini gearbox and a 2.2 kW SEW Electric Motor combination fitted with a failsafe brake unit. The brake, being failsafe, always defaults to on should, for any reason, the electrical supply is lost or the joystick is in its centre (neutral) position. The Electric Survey Winch can be driven bi-directionally using a proportional joystick, which is mounted locally on the side of the electrical enclosure, the proportional joystick controls both the direction and the speed of the winch in heave and pay out.
