Shackle swivel

standardanchor chainmarine

Overview

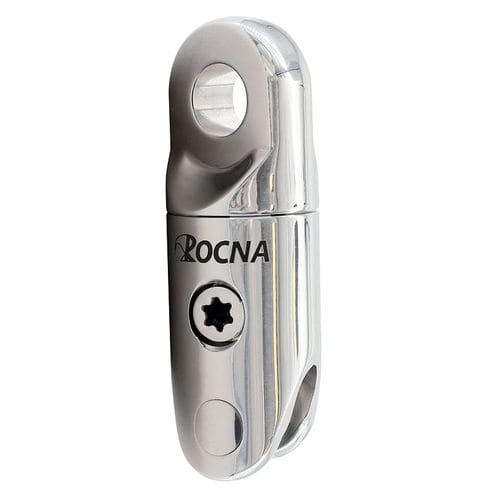

The Rocna Swivel is an individually proof-tested anchor swivel engineered for marine anchoring systems. Manufactured in G70 duplex stainless steel with a Nord-Lock washer pair, it is designed by Peter Smith to pair with Rocna anchors or any anchor system requiring matched strength and dependable rotation.

Key Features

• Individually proof tested — each unit serial-numbered and loaded to 13,800 kgf
• G70 duplex stainless steel for high tensile strength and improved marine corrosion resistance
• Nord-Lock washer system for secure clamping under cyclic loads
• Universal shackle attachment compatible with modern anchor designs
• Engineered by Peter Smith to match Rocna performance criteria

ROCNA SWIVEL VS. TYPICAL SWIVEL:
Individual Proof Testing | ROCNA SWIVEL: YES | TYPICAL SWIVEL: NO
Material Spec | ROCNA SWIVEL: G70 DUPLEX | TYPICAL SWIVEL: generic stainless
Nord-Lock System | ROCNA SWIVEL: YES | TYPICAL SWIVEL: generic hardware
Lifetime Warranty | ROCNA SWIVEL: YES | TYPICAL SWIVEL: limited
Designer Pedigree | ROCNA SWIVEL: PETER SMITH | TYPICAL SWIVEL: --

What the swivel does

• Prevents chain twist — rotates freely to keep rode straight and prevent twist accumulation that can kink chain or increase retrieval resistance.
• Smooth retrieval — eliminates resistance when the anchor self-rights on the bow roller, allowing the anchor to orient cleanly.
• System confidence — built to meet or exceed chain and shackle ratings so the swivel is not the weak link in the anchoring system.

Installation Highlights

• Three-step installation: attach swivel to anchor with bow shackle, align chain-side bodies and insert chain pin through end-link, tighten and secure Nord-Lock washer pair (60° beyond finger-tight or to 20 N·m).
• Includes square-drive key (or T45 bit). Use a torque wrench for the 20 N·m setting.
• Typical installation time: approximately 15 minutes with common tools.

Availability & Compatibility
12mm Rocna Swivel (fits 10–11 mm metric chain and 3/8″ imperial chain) is available now. Additional sizes will be released in future product launches.

Specifications

• Model: Rocna Swivel
• Working Load Limit (WLL): 3,460 kgf / 7,640 lbf
• Minimum Breaking Load (MBL): 13,800 kgf / 30,500 lbf
• Shackle pin point: 17 mm
• Weight: 540 g
• Rode extension (RX): 78 mm
• Material: G70 duplex stainless steel
