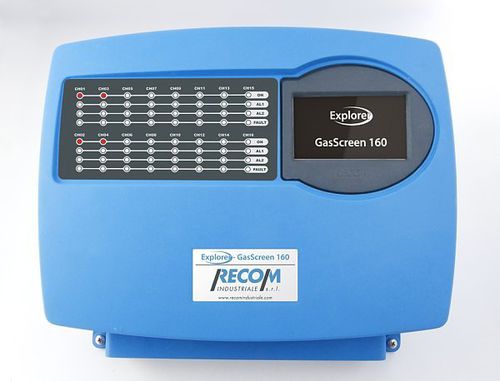

The Explorer GasScreen 160 check unit for the gas monitoring permits the connection of 16 inputs in 4-20mA or of 494 inputs in RS485 (2x256), using such module cards of easy insertions and programming.
You can connect all the available sensors, the ones for combustible gas, oxygen and toxic gas.
The connected sensor calibration and setting, so as the detection parameter and alarms change, can be done on a comfortable and large touch screen color display, in a simple and easily understood way, showing in real time the measurement, the referred unit and the detected gas type, supplying clear
information in case of alarm.
During the setting steps, a simple and operating menu leads the user.
A box bottom plate for the wall fixing guarantees an easy installation on any kind of surface. CPU is done for the local wireless connection or GPRS through the connection of optional card inside the instrument; the internet connection is available on the Ethernet socket.
4-20 mA 16 channels
256 x 2 channels RS 485 MODBUS RTU
Large Color touch screen display
Easy to assembly and easy to set up
Powerful CPU for the inputs and alarms management
Indication of gas concentrations detected from sensors on a large colour touch screen display and indication of gas alarms by acoustic buzzer and colour leds.
16 input 4-20mA sensors or 256 x 2 sensors by RS-485 connection.
