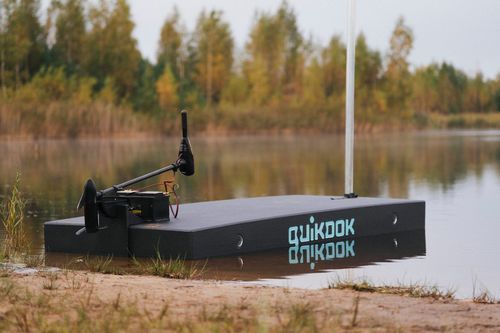

Modular floating dock module

Overview Quikdok is a load-bearing modular floating platform system engineered for industrial, marine and leisure use. Individual modules connect into scalable configurations for pontoons, floating work platforms, event stages and temporary access solutions. Developed with industrial coating and composite fabrication expertise since 2013.

Applications

• Industrial access platforms for maintenance, installation and structural work (bridges, waterfront construction).
• Modular scaffolding support and integrated anchorage for elevated work (supports 750 × 2450 mm scaffold setups up to 4 m high).
• Transportable leisure and event platforms: floating terraces, festival stages and recreational pontoons.
• Dock extensions, house access and remote water-access systems for canals, rivers, lakes and sheltered coastal conditions.

Key product features

• Modular structural grid enabling rapid on-site assembly and flexible reconfiguration.
• High load distribution and precision load-balanced layouts for level, stable support.
• High-density buoyancy core with reinforced composite shell and seamless industrial polyurea coating for waterproofing and impact resistance.
• Module dimensions optimized for transport (fit in standard cargo vans) and handling by one to two operators.
• Integrated anchoring points and options for accessory integration (outboard motors, rails, utilities).

Technical construction Each module is manufactured with industrial fabrication methods to ensure durability, load stability and resistance to long-term environmental exposure. Construction elements include:

• High-density EPS core CNC-shaped for precision buoyancy and consistent geometry.
• Press-bonded structural plywood and controlled compression layering for rigidity and repeatable dimensional consistency.
• Reinforced composite shell delivering mechanical strength.
• Industrial high-pressure polyurea coating applied as a seamless waterproof membrane for extreme adhesion, impact and abrasion resistance.
• Integrated mechanical fastening/modular connection system for rapid mechanical assembly.

Production & coating technology

• Large-format industrial press (3000 × 1300 mm) enabling controlled compression bonding and repeatable structural performance.
• Precision CNC shaping of EPS cores for stable buoyancy and dimensional control.
• High-pressure polyurea application using professional reactor systems to ensure exact chemical ratios, strong adhesion and long-term marine durability.

Technical specifications

• Denomination: Quikdok Modular Floating Platform System.
• Standard module sizes: 240 × 124 × 25 cm and 300 × 124 × 25 cm (also referenced 2400 × 1240 × 250 mm and 3000 × 1240 × 250 mm).
• Module weight: approximately 70–75 kg.
• Safe payload: reported values up to 465 kg and in some sources up to 650 kg per module (see product pages for configuration-specific figures).
• Surface finish: slip-resistant polyurethane/polyurea coating; standard UV-resistant black industrial finish (custom colours available).
• Core: high-density EPS buoyancy core.
• Structure: reinforced composite shell with press-bonded structural plywood layering.
• Connection: mechanical fastening / integrated modular connection system for fast assembly.
• Designed uses: industrial work platforms, scaffolding support, leisure/event platforms, dock extensions and transportable water-access systems.
• Durability: engineered for long-term exposure to water, impact and weather with a seamless polyurea membrane for waterproofing and abrasion resistance.
