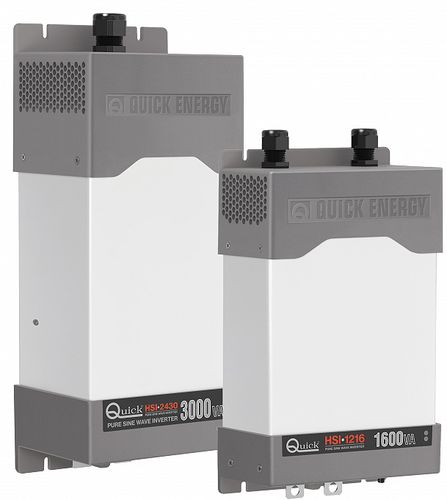

voltage converter / DC / AC / for ships
HSI Series

{{requestButtons}}

Characteristics

  • Type:

    voltage

  • Input:

    DC

  • Output:

    AC

  • Application domain:

    for ships

  • Voltage:

    12 V, 24 V

Description

Quick HSI inverters are devices which convert direct current (12 or 24V) in alternate current (230/240 V - 50/60 Hz), allowing the use onboard of any electrical device which is supplied by mains tension, such as DVD player, hair-dryer or microwave oven. Quick HSI inverters, designed to provide the highest efficiency, are supplied with advanced communication functions which allow to monitor the power consumption of the connected devices.
Pure sine wave
High efficiency
Small dimension and light weight due to high frequency switching conversion
Full output power operating at high ambient temperature
High output peak power (200% of nominal value for 1s)
Low power mode (LPM) to save batteries in case of no load condition
Configurable output voltage and frequency (by CAN bus interface)
AC bypass mode with external AC input (Only in models up to 1600VA)
Parallel operation mode (only for HSI1220, HSI2420, HSI2425, HSI2430 models)
CAN bus interface for control and monitoring functions
Variable speed for the cooling fans
Friendly user interface
Reverse Polarity (by fuse), Short circuit, overloading, output overvoltage and overheating protection.
