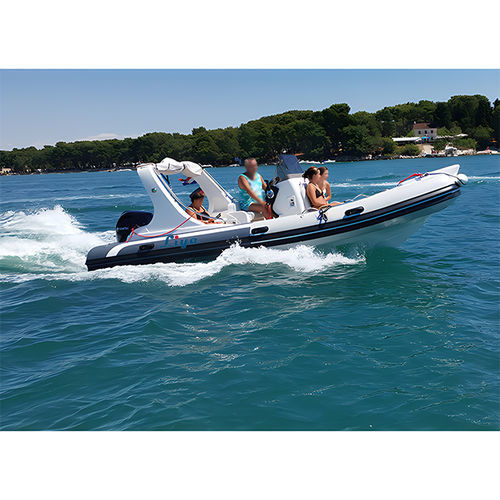

Outboard inflatable boat LY430

gasolineRIBside console

Dimensions (m-ft) Model…………….........................……..LY430 Length overall…….........................…4.30m –14’ Inside length………...........................3.7m –12.14’ Width overall……..........................….1.96m –6.43’ Inside width………..........................…1.00m –3.3’ Tube diameter……........................….0.48m –1.6’ V shape degree…............................20° Capacity Capacity..…………...............................7people Max loading…………...........................880kg Net Weight (kg)……………....................230kg Airtight compartment...................….4pcs Category…………………..........................C 20/40ft container…….........................4/8pcs Outboard engine data Single engine shaft…………………....…….L 20’ Recommended power (Hp)……………..40 Max recommend power (Hp )………….51 (If install maximum hp engine, confirm with factory, very important for boat Boat Features: 1.Vacuum Absorption to make fiberglass hull high intensity and tenacity 2.PVC core replace traditional plywood core inside 3.Longitudinal and transverse keel jointed configuration to make more stronger Tube option 1. French Orca Hypalon /TAiwan Hypalon /Germany PVC Inflatable Tube 2. Solid Foam-filled Tube
