Center console fishing boat Seaya 580D

offshorealuminum8-person max.

Overview

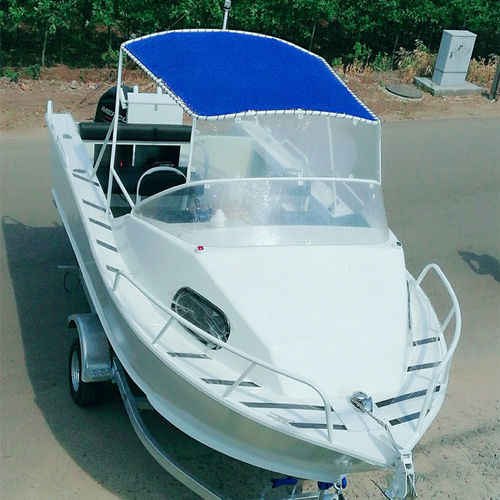

SEAYA 580D is an aluminum fishing boat designed for lake and coastal fishing. Built in marine-grade 5083H116 aluminum, the hull offers corrosion resistance, light weight and structural strength. Intended for waters up to 10 km offshore and wave heights under 1 m, it is suitable for island-protected sea areas, rivers and lakes.

Materials
Hull constructed from marine aluminium plates with classification society certificates. Plate model: 5083H116 — lightweight, high strength and corrosion resistant.

Data sheet
Length Overall: 5.8 m
Width Overall: 2.3 m
Depth: 1.4 m
Draught: 0.45 m
Hull weight (excl. engine): 800 kg
Recommended max. power: 150 hp
Max. load: 1000 kg

Hull construction
Hull made from aluminium sheet 5083H116.
Side plate thickness: 3 mm
Bottom plate thickness: 4 mm

Standard Package Including Following Items

• Live bait tank & storage box, up to 6 units
• Rod holders, up to 13 units
• Navigation lights, 2 units
• Aft light, 1 unit
• Bilge pump, 1 unit
• Battery box, 1 unit
• Battery switch, 1 unit
• Switch panel, 1 unit
• Compass, 1 unit
• Anchor 4 kg, 1 unit
• 150 L underfloor fuel tank, 1 unit
• Handrails, 4 units
• Bollards, 4 units
• Sunshade T-top, 1 unit
• Driver seat, 1 unit
• Outboard engine: not included
• Battery: not included

Product Description
SEAYA 580D aluminium fishing boat: lightweight, corrosion-resistant hull and practical fishing layout, for family or small-group coastal and inland fishing operations.

Specifications

• Brand: HVON
• Model: SEAYA 580D
• Series: Aluminum alloy boat
• Material: Aluminium alloy (plate model 5083H116)
• Color: Silver
• Length Overall: 5.8 m
• Width Overall: 2.3 m
• Depth: 1.4 m
• Draught: 0.45 m
• Hull weight (excl. engine): 800 kg
• Recommended max. power: 150 hp
• Max. load: 1000 kg
• Hull sheet thickness: side 3 mm, bottom 4 mm
• Standard package items: live bait tank, rod holders, nav lights, aft light, bilge pump, battery box & switch, switch panel, compass, anchor (4 kg), 150 L fuel tank, handrails, bollards, sunshade T-top, driver seat
