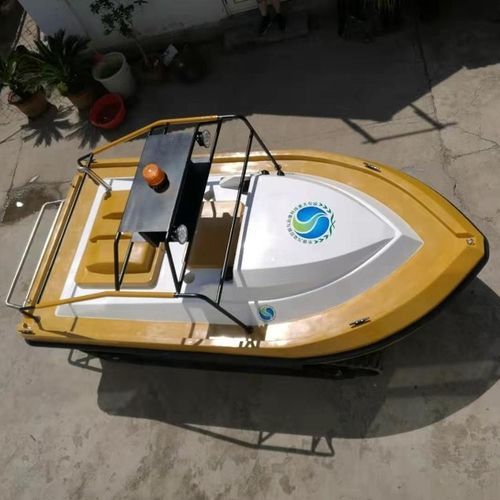

Patrol marine drone HV450

rescueautonomousteleoperated

Product brief
Amphibious unmanned surface vehicle (USV) operating on both water and land. Remote-control and autonomous navigation options for multi-terrain monitoring, patrol and rescue.

Overview
HV450 is an amphibious USV with a tracked chassis designed for operations in mudflats, marshes and shallow water. Standard propulsion is a gasoline engine with HJ160 water-jet; hybrid and pure-electric (EV) propulsion options are available. The platform supports remote control and autonomous navigation systems.

Key functions and applications

• Environmental monitoring: water sampling and soil sample collection.
• Patrol and security: perimeter monitoring and waterborne surveillance.
• Emergency response: transport and rescue in shallow-water and mudflat conditions.
• Multi-terrain mobility: tracked chassis for marsh, mudflat and shore operations.
• Propulsion options: gasoline (standard), hybrid or pure electric (EV) selectable.

Product details
Hull manufactured from FRP (fiberglass reinforced plastic). Tracked undercarriage provides cross-country capability on soft ground and transitions between land and water. Integrated navigation and control suite enables remote operation and autonomous mission execution. Modular payload bay supports sensors and recovery equipment.

Illustrations and photos
Product page includes exterior images, structural diagrams and in-service photos showing hull, tracked chassis and sampling/monitoring equipment (images for illustration only).

Basic parameters
Hull size (L × W × H): 4.50 × 2.10 × 2.50 m
Net weight: approx. 1300 kg
Load capacity: 450 kg
Hull material: FRP

Navigation parameters
Power: gasoline engine (standard), water-jet propulsion HJ160
Endurance (cruising): 5–8 h
Maximum speed: 3 m/s

Communication / Transmission
On-board video/data communication: 4G / GPRS
4G transmission range (video/data): > 20 km

Radio remote control (on-vehicle)
Communication mode: real-time / point-to-point
Waterproofing grade: IP66
Standby time: 5–10 hours
Remote control distance (radio remote): max. 1 km

Base station remote control system
Communication mode: real-time / point-to-point
Waterproofing grade: IP66
Standby time: 10 hours
Remote control distance (base station): max. 10 km

Configuration list

• Surveillance camera: 1 set
• Alarm lights and loudspeaker equipment: 1 set
• Radio remote control: 1 set
• Base station remote control system: 1 set

Product classification
Series: Unmanned boat
Brand: HVON
Model designation: HV450

Characteristics / technical specifications

• Model: HV450
• Series: Unmanned boat
• Brand: HVON
• Hull dimensions: 4.50 × 2.10 × 2.50 m
• Net weight: ~1300 kg
• Load capacity: 450 kg
• Hull material: FRP
• Propulsion: gasoline engine with water jet (HJ160) — hybrid and pure electric (EV) optional
• Endurance: 5–8 h (vehicle); standby 5–10 h (radio remote), 10 h (base station)
• Max speed: 3 m/s
• Video/data transmission: 4G (>20 km)
• Radio remote distance: up to 1 km
• Base station remote distance: up to 10 km
• Waterproofing grade: IP66
• Typical configuration: surveillance camera, alarm lights & loudspeaker, radio remote control, base station remote control system
• Typical applications: patrol, transport, rescue, water quality sampling, soil sampling, environmental monitoring
• Chassis: tracked design for mudflat and marsh terrain
