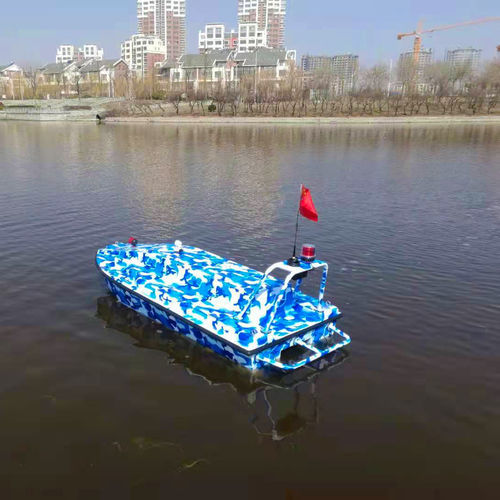

Patrol marine drone HV270C

rescuefor water samplingteleoperated

Overview
Unmanned surface vehicle (USV) for maritime patrol, monitoring and law-enforcement support. Designed for continuous nearshore and coastal operations; equipped with 4G real-time video transmission, alarm system and night-capable imaging.

Applications

• Maritime patrol and perimeter monitoring (24/7 operation support)
• Search and rescue: rapid response for persons overboard and delivery of emergency supplies
• Border and port control: detection and identification of intruding vessels
• Evidence collection: HD recording for enforcement and incident documentation

Naval and maritime procurement
Model HV270C is fielded by naval and maritime agencies and has undergone stability and continuous-operation testing applicable to maritime enforcement procurement requirements.

Multi-function integration

• Video surveillance and live streaming via 4G
• Alarm lights and loudspeaker for warnings and public address
• Environmental monitoring: water sampling and basic sensors
• Rescue and logistics: small cargo/medical drop and support tasks

Technical advantages

• Compact, stable FRP hull optimized for nearshore operations
• Corrosion-resistant materials to reduce maintenance in marine environments
• Modular payload options for cameras, sensors and communication equipment
• Long-range 4G video/data transmission (>20 km) and real-time remote control modes

Specifications & Configuration

• Code: HV270C
• Series / Type: Unmanned boat / USV
• Model: HV270C
• Brand: HVON
• Hull size (L×W×H): 2800×1200×700 mm (2.8×1.2×0.7 m)
• Material / Hull material: FRP
• Color: yellow
• Net weight: approx. 100 kg
• Load capacity: 100 kg
• Propulsion: 48V electric waterjet HJ130
• Endurance: 3–5 h
• Maximum speed: 3 m/s
• Communication: 4G network / GPRS; video/data transmission >20 km
• Radio remote control: real-time / point-to-point; waterproofing IP66; standby time 5–10 h; remote distance max. 1 km
• Base station remote control: real-time / point-to-point; waterproofing IP66; standby time 10 h; remote distance max. 10 km
• Standard configuration: surveillance camera (1 set), alarm lights & loudspeaker (1 set), radio remote control (1 set), base station remote control system (1 set)
