Man overboard rescue system for boat JY-10

Overview
Lightweight FRP soft rescue frame designed for rapid recovery of persons from the water on pilot vessels, tugs, police boats and coast guard craft. Stainless steel 316 hardware and polypropylene floatation provide corrosion resistance in marine environments.

Key features

• Manual retrieval system for controlled, gentle lifting of casualties.
• Foldable design for compact stowage on deck or railings.
• Quick deployment and recovery to minimise time in the water.
• Can be used as a transport stretcher when disassembled.
• Bright orange/red colour for high visibility.

Applications

• Pilot vessels
• Tugs
• Police boats
• Coast Guard and rescue craft

Design & materials

• Frame: glass-fibre reinforced plastic (FRP) rods assembled with slotted connections.
• Load surface: polyester straps with PVC or polypropylene cover.
• Floatation: foamed polypropylene floats.
• Hardware: stainless steel 316 (SS316).
• Colour: orange, red.
• Approx. weight: 12.5 kg (standard configuration).

Operation

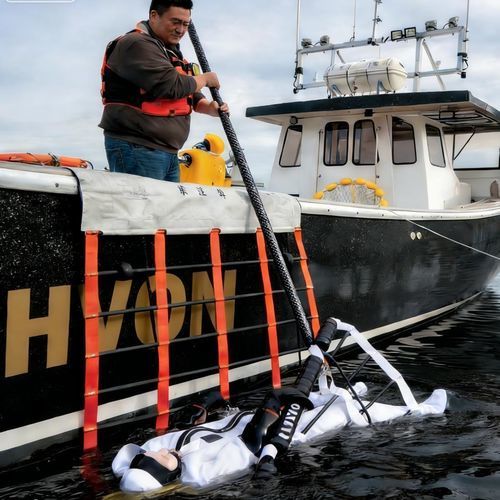

• Deploy the frame over the side so it sits in the water as a support cradle.
• Place the casualty onto the cradle and recover by pulling grab handles or a retrieval line.
• Suitable for small rescue boats, RHIBs and rigid-inflatable coast guard craft.

Technical specifications

• Code: JY-10
• Model: JY-10
• Brand: HVON
• Type: Soft rescue frame / water rescue equipment
• Standard width: 1.8 m
• Standard configuration: 1.8x1.9 m (other sizes available, see size options)
• Materials: FRP + polyester straps + SS316 hardware + foamed polypropylene floats
• Colour options: orange, red
• Approx. weight: 12.5 kg

Size selection (examples)

• Freeboard 0.5 m — Sizes: 1.8x1.9 / 1.5x1.9 / 1.2x1.9 / 0.9x1.9 — Depth 1.9 m — Drag rope: yes — Telescopic pole: yes — Cover: yes
• Freeboard 0.75 m — Sizes: 1.8x2.3 / 1.5x2.3 / 1.2x2.3 / 0.9x2.3 — Depth 2.3 m — Drag rope: yes — Telescopic pole: yes — Cover: yes
• Freeboard 1.0 m — Sizes: 1.8x2.7 / 1.5x2.7 / 1.2x2.7 / 0.9x2.7 — Depth 2.7 m — Drag rope: yes — Telescopic pole: yes — Cover: yes
• Freeboard 1.5–4.0 m — Other size combinations available up to 1.8x6.5 m; contact supplier for custom configurations.
