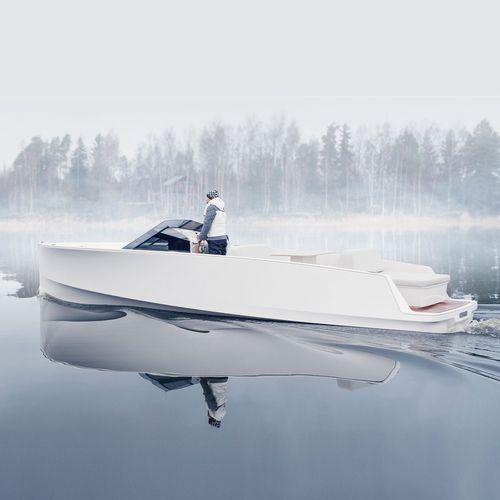

Inboard cabin cruiser Q30

electricopenfiberglass

SPECIFICATIONS LOA 9.3 m Beam 2.2 m Draft 0.5 m Displacement 1 500 kg Cruising speed 9 knots Fast Cruising 15 knots Range at Cruising 42 / 80 nautical miles (30 / 60 kWh) Range at Fast Cruising 22 / 40 nautical miles (30 / 60 kWh) GENERAL Passenger capacity: 8 CE certification category: C (Inshore) Self bailing cockpit through drains on cockpit floor. STRUCTURAL Hull: Vinylester and unidirectional glass fiber skin with foam core above and below waterline. Laminated using resin infusion process. White gelcoat as standard. Deck: Vinylester and unidirectional glass fiber skin with foam core. Laminated using resin infusion process. White gelcoat as standard. MECHANICAL Propulsion: Oceanvolt AXC20 electric motor with 20kW continuous power Batteries: Oceanvolt 30kWh lithium battery pack (optional 60kWh) Chargers: Victron Multiplus 220V 48/3000/16 charger inverter Propeller: Four bladed high-skew 15”x16” propeller Steering: Hydraulic, composite rudder with stainless steel shaft Bow Thruster: Side-Power SE30 ELECTRICAL House Battery: 12V / 20Ah lithium house battery Distribution: Empirbus Digital Switching system Controls and Navigation: iPad application (optional digital switches) Navigation lights: LED lights Exterior lights: Courtesy LED lights under furniture Interior lights: LED all around lights and LED spotlights Outlets: 5V USB outlets on helm-station and inside cabin Cooling: Isotherm Cruise 36 litre refrigerator (2nd one as option)
