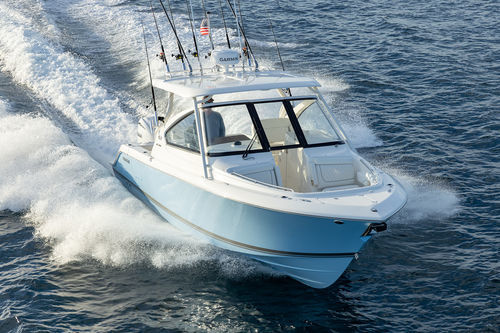

Outboard runabout DC 286

twin-engineopendual-console

Overview
Pursuit’s newest dual console built to hit all the sweet spots – size, profile and layout. With an LOA of 30' and a 9'6" beam, the DC 286 is engineered for confident rough-water performance and refined comfort at rest. A full-width fiberglass hardtop with integrated elevated windshield delivers protection, visibility and airflow. The versatile interior offers generous seating, abundant storage and dedicated fishing, cruising and entertaining features without complicated conversions.

Built with PURETECH SUITE™
Built with Pursuit’s PURETECH SUITE™ engineering and manufacturing practices delivering structural integrity, systems integration and fit & finish.

Hull Features

• Five year hull and deck structural warranty, five year blister free warranty and two year limited warranty
• Pursuit Fresh White gelcoat
• Hand laminated hull with vinyl ester resin and engineered fabrics
• 5-ply resin infused composite transom with patented transom reinforcement grid
• Infused fiberglass structural grid with molded finish and integrated bilge water management
• Foam filled structural grid
• Molded FRP hull side boarding door with removable/storable ladder and 316L stainless grab rail
• Bronze thru-hull fittings below waterline; stainless clad composite and chrome over bronze in specified zones
• Bronze garboard drain
• Lenco electric trim tabs with auto-retract
• 316L stainless steel bow and stern eyes
• Integrated transom platform extensions outboard of engines
• 3-step telescopic boarding ladder mounted in hull platform
• Integrally molded anchor system

Deck Features

• Mechanically fastened hull and deck joint
• High density PVC rub rail with solid 316L stainless insert
• Molded one-piece deck and cockpit liner with non-skid pattern
• LED navigation lights (2 mile)
• Flush-mounted integral anchor locker with horizontal windlass, helm switch and remote at locker, 316L stainless anchor roller, 14 lb stainless plow anchor, chain and rode
• Fresh & raw water washdown connections and LED courtesy light at anchor locker
• Removable/storable bow beach boarding ladder shared with hull side door
• 316 stainless pop-up and spring cleats
• Molded recessed hatches with flush hinges, gaskets and 316L latches and overboard drain tracks
• Molded transom walkthrough with hinged transom door and magnetic catch
• Self-draining cockpit with bronze ball valve at hull side
• Bow grab rails port and starboard
• Single-level splashwell deck with non-skid pattern area

Hardtop & Windshield

• Molded fiberglass full-beam hardtop with dedicated locations for outriggers and electronics
• Powder-coated hardtop structural system with heavy-duty aft supports, integrated rod holders (4) and handrails
• Custom fiberglass-frame windshield system with tempered glass and center walkthrough door
• Custom stainless ratcheting anchor/stern light with burgee rings
• Tri-color LED lights and integrated spreader lights; 316L stainless underside grab rails
• Windshield wiper (starboard) with washer system

Cockpit Features

• Folding transom seat with patented self-adjusting backrest
• Custom cockpit upholstery with Dri-Fast foam and mesh backing
• Captain’s chair with folding armrests, flip-up bolster, wood accents and swivel base with fore & aft adjustment
• Starboard-side aft facing fold-down jump seat
• Portside aft-facing seat with folding armrest, recessed drink holder and 28-gallon insulated cooler below
• Portside companion seat with folding armrests, drink holders and storage compartment
• Audio: JL Audio custom-tuned stereo with Bluetooth-compatible MM105 source unit, premium coaxial speakers, 10" subwoofer and DSP amplifier
• Molded entertainment center with sink, faucet, Corian® countertop, drink holders and trash can storage
• Cockpit machinery access hatch; bow and midship floor storage with machinery access
• Fresh water shower with pullout sprayer and fresh/raw water quick-connect outlets with 25' coil hose
• LED cockpit courtesy lights (white)
• Molded forward bow seating with folding armrests, insulated storage below and dedicated storage for hull side door ladder
• Bow coaming boxes with drink holders, storage keepers and 12V & USB A/C charging (port side only)
• Single piece acrylic bow access door and Sunbrella bow tonneau cover
• Three fire extinguishers (helm / entertainment center / companion seat base)

Fishing Features

• Gunwale rod holders (4) and transom rod holders (4)
• Rod holders integrated into aft hardtop supports (4)
• Lighted Oceana Blue 22-gallon recirculating insulated livewell with clear acrylic lid
• Under-gunnel brush/gaff storage (port) (n/a with port fold-out seat option)
• Insulated transom fish box/storage tub (36 gallon) with overboard drain
• Tackle storage in portside seat base (n/a with cockpit refrigerator option)

Helm

• Molded fiberglass helm with instrumentation visor, wood accent trim and molded-in footrest
• Yamaha electric steering with programmable friction, tilt helm and Edson 316L stainless wheel with control knob
• 12V switch panel with illuminated rocker switches and backlit function text
• JL Audio MM105 surface-mount source unit, compass, trim tab control and indicator
• Drink holders, integrated coaming storage, glovebox, 12V outlet and dual USB (A & C) charger and wireless phone charger

Electronics

• Garmin® electronics package: GPSMAP 1243-XSV with custom Pursuit UI displays, custom dash panel, 1kW CHIRP transducer, Yamaha CL-5 touchscreen display, NMEA 2000 starter kit and VHF radio with antenna and ratchet-mount base

Head (port side)

• Fiberglass door with integrated storage and 316L stainless locking latch
• Entryway step and 316L stainless handrail
• Molded interior liners, electric marine head with 9-gallon holding tank, macerator discharge pump and deck pump-out fitting
• Vanity with molded sink, faucet, Corian® countertop, mirror and wood accent cabinet with storage
• Cubby storage, tissue holder, switched overhead light and 12V outlet with dual USB (A & C)

Console (starboard side)

• Locking access door hidden behind bow access door
• Molded console liners upper and lower
• Dedicated dock line storage and integrally switched overhead light

Electrical Systems

• UL® rated fully tinned, color-coded copper wire and custom in-house heat-sealed, crimped battery cables
• One-piece electrical harness with waterproof connectors and chafe protection
• Powder coated, aluminum, screen printed battery switch and breaker panel
• Bonding system for thru-hull fittings, trim tabs, zinc anode and garboard drain
• Three 12V outlets and three dual USB (A & C) outlets
• Three battery system: port engine, starboard engine and house (AGM)
• Electronics fuse block and grounding bus bar

Mechanical Systems

• Molded interior white gelcoat, molded hatch with gasket and stainless gas spring
• Molded bilge sump area and two 1500 GPH bilge pumps with electronic switches
• 1100 GPH tournament series livewell pump with bronze seacock and thru-hull fitting
• Pressure sensing raw water pump with in-line filter

Fuel System

• EPA-compliant lined 217 US gallon rotomolded fuel tank with engine pickups, shutoff valves, digital level indicator and deck fuel fill plate
• Custom premium fuel feed lines with mechanically crimped fittings
• Two Yamaha® water-separating fuel filters with primer bulbs

Water System

• 26 US gallon fresh water capacity (two 13-gallon tanks) with 316L stainless deck fill plate
• Premium color-coded water hose system with mechanically crimped ends
• Pressure sensing/variable speed pump with in-line filter and centrally located freshwater manifold

Available Options & Highlights

• Twin Yamaha® Digital F300 V6 Offshore engines with integrated DES and Helm Master EX controls (joystick optional)
• Yamaha® joystick control with full maneuverability (Set Point™ and autopilot)
• Color, bootstripe and upholstery selection options; premium helm and comfort upgrades including refrigerator/freezer, fiberglass cockpit table and Sunbrella options
• Fishing upgrades: additional rod holders, outriggers and premium rigging kits
• Electronics upgrades: larger Garmin MFD, radar, premium stereo upgrades and underwater lighting
