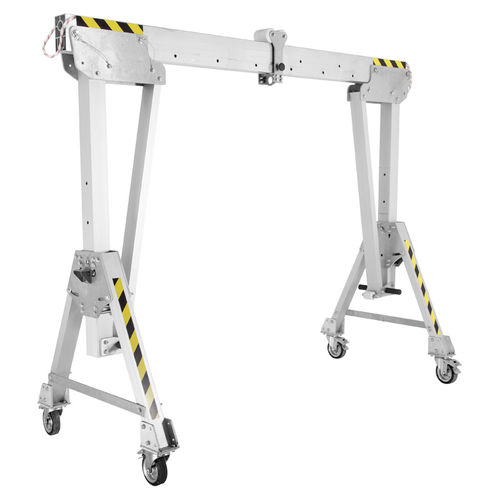

Shipyard crane RAPK

gantry

Thanks to its modular design and use of highstrength aluminium components, the RAPK aluminium gantry crane can be used in a wide variety of applications in changing assembly areas. Different payloads up to 3,500 kg and beam spans up to 7 m are available. The use of an appropriate hoist from the extensive PLANETA range enables the crane to be optimally equipped for your lifting task. Assemblyfriendly individual components enable the crane to be moved quickly to different locations. The standard slewing wheels allow the crane to be easily moved at the installation site, even under load. With approval according to EN 795/A:2012, the RAPK can be used as a height safety device for persons. Support height: three standard types Small / Medium / Large Wheel set with brakes, 160 mm solid tyres for general use Rope roller for beam Transport trolley for beam 2 x locking pin for manual trolley Incl. manual trolleys for material transport and passenger transport Safety factor for lifting material: 2.1:1 Safety factor for use for people: 10:1 Maximum number of persons: 5 Options: Manual rope winch for material transport Manual rope winch for passenger transport
