Chain hoist SUPER-LO

manualcompact

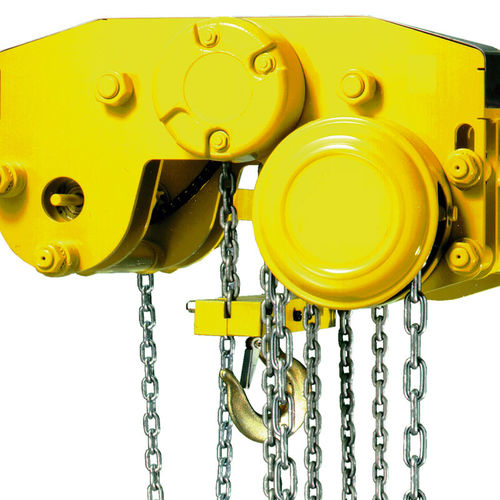

The manual powered SUPER-LO HPR is a very compact lifting equipment that combines an integrated chain hoist with a geared type trolley. The important fact is that the load hook can be lifted up directly under the beam flange. No swing of load This special development of a combined trolley hoist has two lifting gears, one at each side of the girder. They lift the load fully synchronized with two parallel operating load chains what hinders the attached load to swing. It is different from other models on the market with only one gear and one chain that goes from one beam side through the suspension device to the other trolley side. SUPER-LO HPR places your load softly and precisely on the spot. That is an important advantage in machinery rooms of ships i.e. during pulling of motor pistons. Fast Lifting is done with very little hand force! The gears have a high ratio. It enables SUPER-LO HPR to be your first choice when only very little headroom is available and one man shall do the work! Quality It is a solid and robust device made from best steel with machined sprocket wheels, ball bearing wheels and high tensile load chain. Anti-fall and antirocking systems are included of course. Features: Capacity from 1,000 kg to 24,000 kg A solid and robust device made from best steel with machined sprocket wheels, ball bearing wheels and high tensile load chain Ball contoured wheels for flat and tapered beam flanges Standard lift 3 m Hand chain operating length 2.5 m Special options: Special EX logo 17px protection with bronze parts and galvanizations Chain collector Overload limiter Beam parking brake: on request
