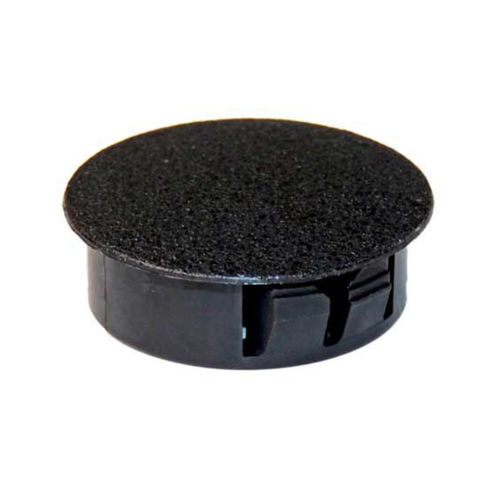

Round cap TFLN series

nylon

Description
The nylon blanking plug is a plastic hole cover designed to close holes in sheet metal and other materials to protect from dirt, dust and moisture. It is suitable for applications in the commercial vehicle industry, industrial bodywork, automotive, shelving, furniture, machinery, window and door frames, appliances and electronic equipment. The product family offers a wide range of shapes and sizes to meet aesthetic and functional requirements, from economical fast-fit plugs to plugs with higher aesthetic value.

Material and Note
Material: NYLON 6.6
Color: BLACK/WHITE
Note: Discontinued item, replaced by series TFLA - SNAP PLUG FOR METAL PANEL

Sizes (dimensional table)
CODE | D | H | HOLE DIAMETER | MAX THICKNESS SHEET
TFLN4.8 | 6,4 | 5,9 | 4,8 | 1,6
TFLN6.4 | 8 | 8 | 6,4 | 1,6
TFLN8 | 9,5 | 8 | 8 | 1,6
TFLN9.5 | 12 | 10 | 9,5 | 3,2
TFLN11 | 13,5 | 10,3 | 11,1 | 3,2
TFLN12.7 | 14,6 | 10,3 | 12,7 | 3,2
TFLN12.7B | 14,7 | 14,3 | 12,7 | 6,4
TFLN14.3 | 16,7 | 10,3 | 14,3 | 3,2
TFLN15.9 | 18,2 | 10,3 | 15,9 | 3,2
TFLN15.9B | 18,2 | 11,5 | 15,9 | 6,4
TFLN16 | 18,5 | 10,3 | 16 | 2,5
TFLN17.5 | 20 | 10,3 | 17,5 | 3,2
TFLN19 | 23,2 | 10,3 | 19 | 3,2
TFLN19.1 | 23,4 | 11,5 | 19,1 | 6,4
TFLN20 | 22,6 | 11,5 | 20 | 2,5
TFLN20.6 | 22,6 | 10,3 | 20,6 | 3,2
TFLN22.2 | 25,8 | 11,5 | 22,2 | 3,2
TFLN22.2B | 25,8 | 14,3 | 22,2 | 6,4
TFLN25 | 29,8 | 11,5 | 25 | 2,5
TFLN25.4 | 30,6 | 11,5 | 25,4 | 3,2
TFLN25.4B | 30,6 | 14,3 | 25,4 | 6,4
TFLN27.8 | 31 | 11,5 | 27,8 | 3,2
TFLN27.8B | 30,9 | 14,3 | 27,8 | 6,4
TFLN30 | 33,3 | 11,5 | 30 | 3,2
TFLN31.7 | 34,9 | 14,3 | 31,7 | 6,4
TFLN32 | 34,9 | 11,5 | 32 | 3,2
TFLN35 | 38 | 11,5 | 35 | 3,2
TFLN38 | 42,7 | 11,5 | 38 | 3,2
TFLN38.1 | 42,4 | 14,3 | 38,1 | 6,4
TFLN44.5 | 48,4 | 11,5 | 44,5 | 6,4
TFLN45 | 48,4 | 11,5 | 45 | 3,2
TFLN51 | 55 | 11,5 | 51 | 3,2

Characteristics / technical specifications

• Product type: Nylon blanking plug (hole cover / plug)
• Material: Nylon 6.6
• Available colors: Black, White
• Status: Discontinued (replaced by TFLA series)
• Applicable industries: Commercial vehicles, industrial bodywork, automotive, furniture, shelving, machinery, appliances, electronics
• Range of codes/sizes: TFLN series (codes and dimensional data as listed in the sizes table)
• Functions: Hole protection from dirt, dust and moisture; aesthetic finishing of openings
