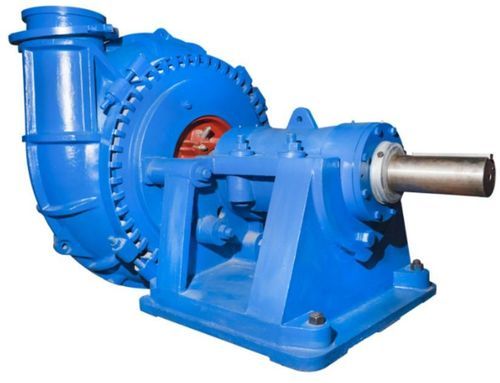

Dredging pump Dredging Pump

slurryfor liquidsimpeller

Product description
The OrangePit dredging pump is engineered for high-concentration dredging and abrasive slurries. Double-curved impeller blades enhance hydraulic efficiency and reduce the risk of blockages. For dry installation the unit becomes self-priming when the intake reaches approximately 60% fill level. The submersible variant includes an additional seal set on the drive shaft for improved protection of bearings and gearbox. Pumps are built from separate wear-resistant parts to allow fast on-site replacement and lower life-cycle costs. Standard models offer adjustable casting/mounting positions for straightforward integration into existing dredgers. Available in sizes from 6" to 30", the range provides optimized suction capacity with low energy consumption and simplified maintenance procedures.

Key features / Technical specifications

• High-concentration dredging pump suitable for abrasive slurries
• Double-curved impeller blades for improved efficiency and reduced wear
• Self-priming in dry operation at approximately 60% intake level
• Submersible version: extra seal set on the drive shaft
• Modular wear parts for easy exchange and cost-effective maintenance
• Adjustable mounting/casting positions for retrofit installation
• Optimized suction capacity and low energy consumption
• Available sizes: 6" to 30"
