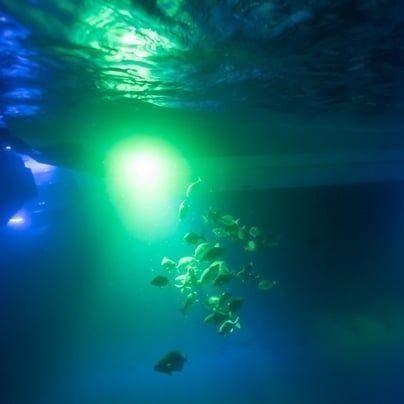

Underwater boat light 01212 series

LEDsurface-mountintegrated

Product overview
The Sport Colours - Camera Edition is a surface-mounted underwater light with an integrated underwater camera, designed for leisure and sport fishing vessels. It provides a wide, natural field of view with minimal distortion and delivers 3,500 fixture lumens for clear underwater illumination. The unit uses OceanLED optical technology and is engineered for marine environments.

Product features

• Up to 3,500 fixture lumens
• Integrated underwater camera
• Advanced underwater optics
• Surface-mounted installation
• Built-in driver
• 2-Year No Hassle Warranty
• IP69K certified

Product highlights
Marine-grade AB2 aluminium bronze housing with specialist toughened glass and Tritonium™ antifouling coating. Advanced sealing for prolonged service life in harsh seawater. Cable entry requires a single 12.5 mm (0.5”) hole. Patent pending.

Product variants

• 012123CDN — Sport Colours - Camera Edition (NTSC)
• 012124CDP — Sport Colours - Camera Edition (PAL)
• 012125CDNI — Sport Colours - Camera Edition (NTSC - With Isolation Mounting Kit)
• 012126CDPI — Sport Colours - Camera Edition (PAL - With Isolation Mounting Kit)

Camera specifications

• Image sensor: 1/4” CMOS
• Minimum illumination: 0.01 Lux
• White balance: Auto
• Exposure: Auto
• Video output: 1.0 Vp-p 75Ω BNC
• TV system: PAL 720 x 576 @25 fps; NTSC 720 x 480 @30 fps

Technical details

• Fixture lumens: 3,500
• IP rating: IP69K certified
• Operating voltage (DC): 9–32 V
• Current draw: 12 V DC 5.5 A / 24 V DC 2.4 A

Physical

• Total weight: 700 g
• Cable length: 3 m
• Hole cut-out for cable entry: 12.5 mm (0.5”)
• Material: AB2 aluminium bronze
• Footprint: 100 mm (3.93”)

Mounting recommendations

• Boat size: up to 65’ (20 m)
• Transom/hull spacing: 2–4 ft (0.5–1.2 m)
• Transom quantity: 1–2
• Installation depth (to top of fixture): 8–10” (20–25 cm)

Compatible accessories (examples)

• 2-Way DMX Junction Box — 013205
• 4 Way DC Power Junction Box — 019901
• OceanBridge Controller — 013201
• OceanConnect — 013204

Technical specifications (summary)

• Product name: Sport Colours - Camera Edition
• Type: Surface-mounted underwater light with integrated underwater camera
• Fixture lumens: 3,500
• Operating voltage: 9–32 V DC
• Current draw: 12 V DC 5.5 A / 24 V DC 2.4 A
• Camera sensor: 1/4” CMOS, 0.01 Lux minimum
• Video outputs: 1.0 Vp-p 75Ω BNC; PAL 720x576@25fps / NTSC 720x480@30fps
• Material & finish: AB2 aluminium bronze with Tritonium™ antifouling coating
• Ingress protection: IP69K
• Weight: 700 g; Cable length: 3 m; Footprint: 100 mm
• Hole cut-out: 12.5 mm (0.5”)
• Warranty: 2-Year No Hassle Warranty
