Level indicator 3350-W
for boatsdigitalfor water tanks

level indicator
level indicator
level indicator
Add to favorites
Compare this product


Application domain
for boats
for water tanks

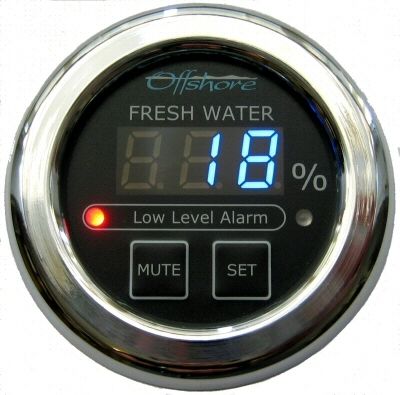

The 3350-W Fresh Water Level Panel Gauge displays the level of the boats fresh water tank on a bright and clear blue LED digital display. The NMEA2000 system allows for up to 16 fresh water tank senders on a single network and this gauge can be set to display the level of any single fresh water tank sender. It has a red LED lamp that flashes and a sounder that beeps when the level falls below the user settable low level threshold. The Mute button stops the silences the sounder when it is pressed. There is a blue LED digital Tank Level display that varies in brightness as the ambient light level varies. The 3350-W is fitted with a 10 amp changeover relay that can control other devices such as pumps or external warning devices. This relay has normally open and normally closed contacts and is activated whenever the low level alarm condition is present. The unit mounts entirely in a standard 2" diameter panel hole and the gauge front and the panel seal are both to IP66. It is certified to the NMEA2000® network standard and attaches to the network using a single "Micro" plug. It draws less than 150mA from the network.
