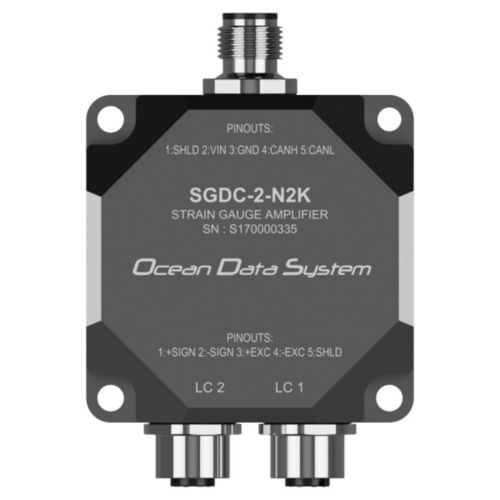

Loadcell amplifier SGDC

NMEA distributionfor shipsfor boat

SGDC – The Smart Link Between Your Load Sensors and Onboard Control/Monitoring Systems The SGDC is a signal conditioner (amplifier) for load sensors, offering unique features and unmatched performance. It acquires the raw mV/V signal from wired sensors and transmits load values directly to displays and monitoring systems via NMEA2000 or CAN J1939 communication buses. The NMEA2000 version is directly compatible with most modern marine electronics brands, including B&G, NKE, Garmin, Madintec, Pixel sur Mer, Sailmon, Raymarine, Expedition Marine, and Actisense. Available in 1- or 2-channel versions, the SGDC can manage one or two sensors in parallel, with a configurable transmission frequency up to 100 Hz. It can also combine both load values (addition, subtraction, averaging) to generate one or more additional computed variables. Thanks to its 24-bit ACDC converter and high-performance processor, the SGDC ensures unrivaled accuracy and outstanding stability. Compact, rugged, IP67-rated, and immune to electromagnetic disturbances (such as lightning), it is designed to withstand the most demanding environments. The SGDC is the ideal companion for your wired load sensors, providing an ultra-precise and reliable measurement chain. Specifications 4 Models Available: 1 or 2 mV/V inputs SGDC-1-xxx: 1 channel SGDC-2-xxx: 2 channels Outputs: CAN J1939 or NMEA2000 SGDC-y-CAN: J1939 output SGDC-y-N2K: NMEA2000 output
