Video camera joystick CST100

navigation systemmulti-functionfor PCs

Short description

• Dual-function mouse and rugged joystick
• Switch between mouse pointer and 3-axis joystick modes
• Vandal-proof construction
• Brushed stainless steel carrier plate
• Designed for harsh industrial applications and navigation controls
• Cursor speed adjustable (OEM only)
• No special drivers required

Details
This dual-function industrial joystick integrates two input modes in a single device. One mode operates as a standard mouse pointer; the other provides a 3-axis joystick. Mode switching is performed by pressing the pushbutton located on top of the joystick.

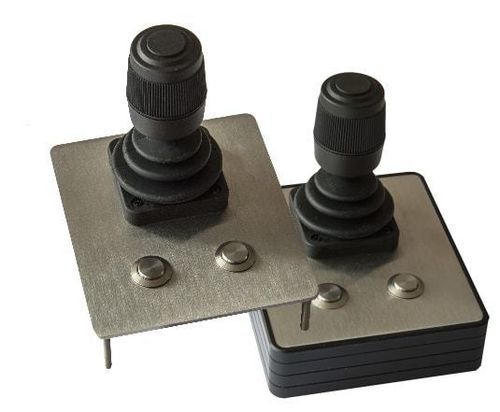

Available types

• Panel-mount joystick: type CST100F2
• Desktop joystick: type CST100S2

Connectivity
The unit is supplied with a 1.6 m long shielded straight cable terminated with a USB Type-A plug.

Typical applications

• CCTV joystick — industrial camera control
• Air traffic control
• General industrial use and HMI navigation

Specifications

• Sealing: IP55
• Carrier plate: brushed stainless steel
• Dimensions: 100 x 116 mm
• Weight: 0.5 kg
• Output: USB
• Cable: 1 shielded, straight, 1.6 m long
• Operating temperature range: -10°C to +60°C
• Storage temperature range: -25°C to +70°C
