Interface for ships (steering, NMEA) WDI-8AO

Overview

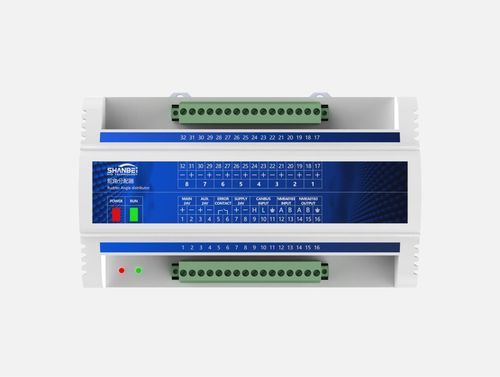

WDI-8AO rudder angle distributor processes rudder angle signals from feedback devices or transmitters, distributes them to up to 8 indicators, supplies power to the feedback devices, and provides outputs for VDR and alarm systems.

General

• Type: Standard
• Dimensions: Standard

Parameters

• Supply voltage: Dual DC24V
• Rudder angle feedback input: 1 x CAN or 1 x RS485
• Indicator outputs: 8 channels, 4–20 mA (or ±10 V)
• VDR output: 1 x NMEA0183
• Alarm output: 1 x normally open contact
• 24V power output: 1 channel, ≤5 W

Options

• Output mode: 8-channel isolated 4–20 mA
• Output mode: 8-channel isolated ±10 V

Technical specifications

• Supply voltage: Dual DC24V
• Rudder angle feedback input: 1 x CAN or 1 x RS485
• Indicator outputs: 8 channels, 4–20 mA (or ±10 V)
• VDR output: 1 x NMEA0183
• Alarm output: 1 x normally open contact
• 24V power output: 1 channel, ≤5 W
