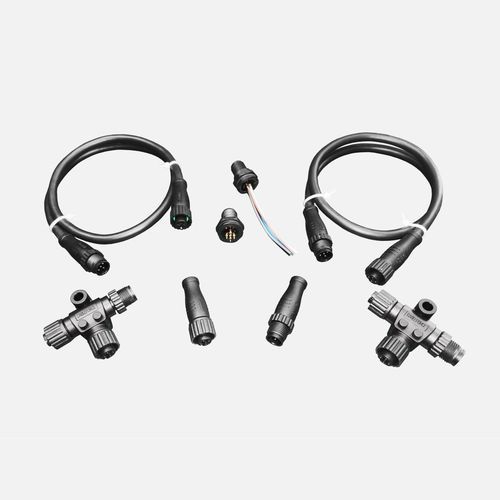

Boat NMEA 2000® connector W2K

Overview
The W2K NMEA2000 bus connection system provides standardized Micro-C M12 connections for shipboard NMEA2000 networks and marine instrumentation.

Applications

• Connection of sensors, displays and controllers on vessels
• Integration and extension of NMEA2000 network segments

Technical specifications

• Connector type: Micro-C M12
• Cable conductor diameter: AWG22
• Rated current: 4 A
• Rated voltage: 250 V
• Insulation resistance: ≥100 MΩ
• Contact resistance: ≤5 MΩ

Materials and construction

• Housing: PA66+GF, UL94 V-0, black
• Contact material: brass with gold plating
• Cable: black PVC with aluminum foil shielding and braided layer
• Seal: fluororubber
• Operating temperature: -20 to 85 ℃
• Ingress protection: IP67
• Standards: IEC, RoHS

Options
Standard types and dimensions. Custom configurations available on request.
