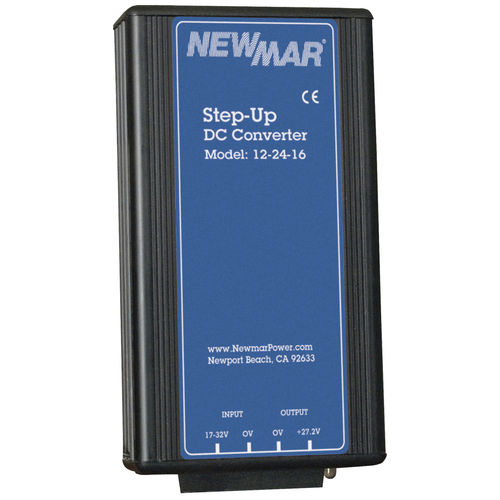

Voltage converter Step-Up
DCDCmarine

voltage converter
voltage converter
voltage converter
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
DC
Application domain
marine
Protection level
non-isolated, insulated
Voltage

12 V, 24 V

Description

These “UP” converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application: In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps. The Isolated Series allows compatibility between positive and negative ground systems, for example installing negative ground 24V electronics on a 12V floating ground aluminum vessel. The isolated series is also a good choice for dual voltage system where noise and interference is an issue. Its input/output partitioning circuit prevents noise on the 12 volt system from being transmitted to the 24 volt side. Standard, Non-Isolated Series Intended for use on negative ground systems 10 -15 VDC input range Available in 7, 16 and 25 amp outputs Current limited, voltage spike suppression, automatic thermal shutdown and recovery Isolated Series Allows positive/negative ground compatibility between 12V battery and 24V accessories Wide range input, 10 – 16V, regulates to 24.5V Superior noise reduction Input/output isolation 250VDC Heavy duty powder coated aluminum case Available in 6 and 18 amp outputs Anodized aluminum case Available on special order as battery charger
