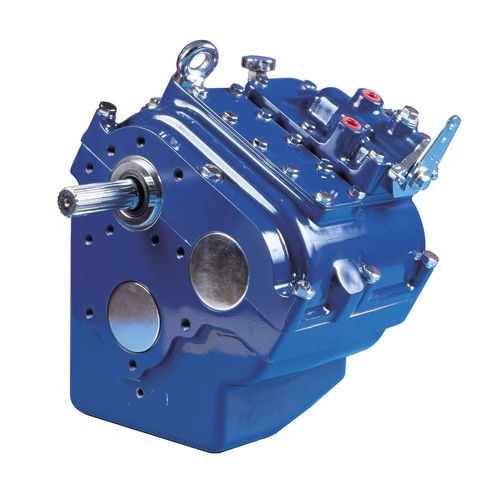

Boat reduction gearbox PRM 750 (1.09:1, 1.459:1, 1.935:1, 2.565:1, 2.904:1 @ 4000 )

engine

Full hydraulic operation: in-line, offest or down angle output shaft The PRM750 marine gearbox is purpose built for use in both pleasure craft and commercial boats; its twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction. To cater for the widest possible variety of boats the PRM750 is offered in three different configurations : in-line, with offset output shaft and 8° down angle output shaft. Reduction ratios available are 1.09:1, 1.459:1, 1.935:1, 2.565:1, 2.904:1 and 3.952:1 (3.952:1 reduction is not available on in line or down-angle gearboxes) all of which can provide either left-hand or right-hand propeller rotation in "ahead", making the gearbox particularly well suited to twin engine installations. A special feature of the PRM750 is the direct drive power take-off which is available as an optional extra; this will power a hydraulic pump to SAE J744C type 'B' specification, thus providing an economical and space efficient means of driving on-board machinery.
