Yacht gangway Standard

built-inmanualaluminum

Overview

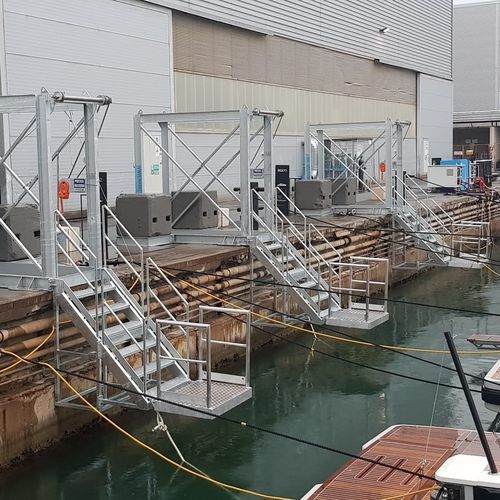

Versatile gangways designed for boarding at different berth types on small, medium and mega-yachts. Fitted with a stepped access where the vessel freeboard is lower than the quay and with a telescopic section extendable up to 5 m. The tilting section can be positioned on any step to provide safe boarding even for megayachts moored away from the quay. Constructed in part from hot-dip galvanized steel and in part from aluminum to reduce weight and improve handling.

MODELLO STANDARD - main characteristics
Total length mm. 9.269
Berth portal in galvanized steel mm. 2.500 x 1.100 - height mm. 2.500
Ballastable base with concrete casting for max Kg. 1.000
No. 2 pads for additional concrete ballast
Fixed aluminum gangway Dim. L fixed 5.000 complete with handrails
No. 3 steps total height mm. 700
No. 7 steps total height mm. 1.634
Removable gangway and steps assembly (plug-in)
Convertible to inline configuration by removing the steps
Tilting control with winch and crank
Rated capacity Kg. 500
Structure weight Kg. 1.150

Specifications / technical data

• Use: fixed tilting gangway for vessel boarding at berth (yachts)
• Materials: hot-dip galvanized steel (portal/base) and aluminum (gangway)
• Telescopic section: extendable up to 5 m
• Step configuration: available to accommodate height differences between vessel and quay
• Model: MODELLO STANDARD
• Total length: 9.269 mm
• Berth portal (galvanized steel): 2.500 x 1.100 mm — height 2.500 mm
• Base: ballastable with concrete casting for max 1.000 Kg; 2 pads for additional ballast
• Fixed aluminum gangway: fixed length 5.000 mm, complete with handrails
• Steps: 3 steps (total height 700 mm) / 7 steps (total height 1.634 mm)
• Gangway and steps assembly: removable plug-in unit; convertible to inline by removing steps
• Tilting control: winch with crank
• Rated capacity: 500 Kg
• Structure weight: 1.150 Kg
• Product code (SKU): PABF
