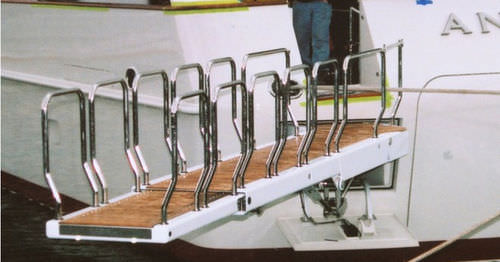

Boat gangway FOLD UNDER
telescopicretractablehydraulic

boat gangway
boat gangway
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Type
telescopic, retractable
Operation
hydraulic
Other characteristics
lightweight
Length

Min.: 5.98 m (19'07")

Max.: 6.46 m (21'02")

Description

The fold-under passerelle provides a unique solution for vessel designs with limited stowage space or requirements for enhanced deployment length. The folding design provides the greatest efficiency in the stowed:deployed ratio. This ratio is further enhanced when the folding plank section includes an additional telescoping plank section. The passerelle folds in a "stacked" fashion when stowed. The Nautical Structures' unique folding design opens into a rigid 'locked' position, providing a boarding experience with very minimal deflection and bounce while in the self-support mode. The folding plank design deploys with both plank sections aligned eliminating the "step" found in all multi-section telescoping planks; a greatly enhanced appearance with additional safety by eliminating potential trip-points along the plank. This design is also ideal for passerelles configured to accommodate a wheelchair. Nautical Structures' hydraulic self-centering, slew-lock and float functions are standard features incorporated into the design of the folding-type passerelle, eliminating the need for electric limit/proximity switches. This provides long-term reliable performance in a wet marine environment with reduced maintenance requirements.
