Boat monitoring panel BM-1 Li
terminalfor battery

boat monitoring panel
boat monitoring panel
Add to favorites
Compare this product


Characteristics

Application domain
for boats, terminal
Applications
for battery

Description

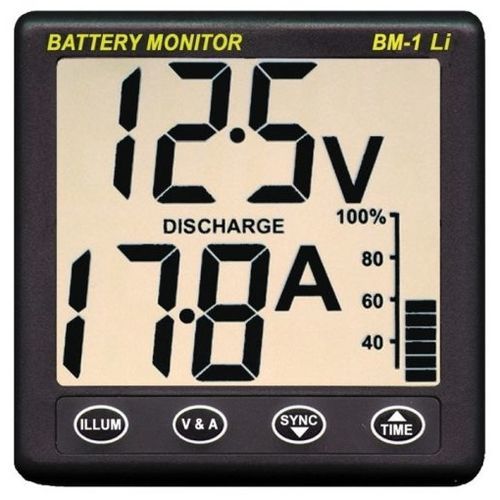

The BM-1 Li battery monitor is specifically designed for 12-Volt lithium iron phosphate (LiFePO4) battery installation. Capable of continuous charge or discharge currents of up to 100 Amps, BM-1 Li displays the service battery Voltage, the charge or discharge current, the state of charge and the time to achieve full charge during charging or the time remaining during discharge. This information leads to more efficient use of the battery, which will enhance battery life and reduce the risk of failure. Specifications Supply voltage BM-1 12V 8 – 16 Volts DC Supply current 1.5 milliamps Battery capacities 20 – 600 AMP Hour Load current 100 AMPS Maximum Charge current 100 AMPS Maximum Shunt Standard 50 millivolt @ 100 AMP Cables supplied: 100 AMP shunt link to M8 Ring terminal. 5 Metre from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery. Display unit Standard 110mm square Clipper case. High contrast LCD, backlit for night viewing. Minimum voltage visual alarm Simple operation – 4 keys to select backlight, Volt/Amp/State of Charge screen, AMP hours or Time to run.
