Propeller shaft mechanical seal MTM1000

propeller shaft mechanical seal
propeller shaft mechanical seal
propeller shaft mechanical seal
Add to favorites
Compare this product


Characteristics

Applications
for propeller shafts

Description

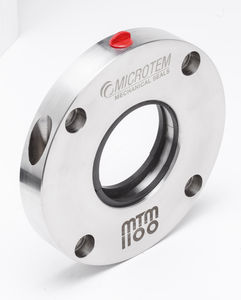

The MTM1000 TBSS (Thrust Bulkhead Seal System) is the world's first "all-in-one" bulkhead device that encloses a fully watertight and fireproof double mechanical seal system, a hydrodynamic bearing that supports the propulsion shaft and an automatic lubrication system and alarm management. Created to allow the reduction of on-board components, space and installation costs, the MTM1000 TBSS has derived the cartridge construction design from the industrial sector, which allows the user to receive a single product, already assembled and ready for use. The double system constituted by the MTM400 ensures resistance to shocks and vibrations. Inside, a hydrodynamic plastic bearing is positioned above a liner which has the purpose of supporting the propulsion shaft by replacing the traditional oil bearings. The TBSS is connected to a closed lubrication system in which a pump circulates the fluid contained within a barrel towards the bulkhead seal and then returns it. The system can be expanded with additional accessories such as: an air or water heat exchanger, one or more temperature sensors with 4-20mA signal, one or more pressure and flow sensors, both analog and digital. The MTM1000 TBSS is a preload and self-centering system that facilitates on-board installation and is fully customizable in size and configuration.
