Propeller shaft mechanical seal MTM903
boat

propeller shaft mechanical seal
propeller shaft mechanical seal
propeller shaft mechanical seal
Add to favorites
Compare this product


Characteristics

Applications
for propeller shafts
Application domain
boat

Description

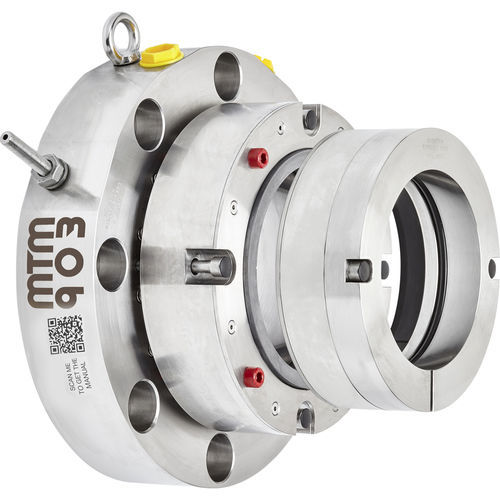

The propeller shaft seal MTM903 was born to attack the market of medium/large boats and represents the product with the best value for money, available on the world market, in its category. Thanks to its design, it is the world's most compact split shaft seal with integrated safety barrier. The stationary flange, provided for those who use flanged stern tube, is for standard in 316 stainless steel and can accommodate up to 6 radial holes (optional) in which it is possible to connect: an additional flushing, a temperature sensor, a vibration sensor (triaxial), a pressure sensor or a dedicated vent line. The size of the flange, the number, the center distance and the size of the set screws can be customized according to need. The stationary ring can be supplied in Silicon Carbide (S1) or in Tungsten Carbide (T1) and is expected to be inserted in a 316 stainless steel case. The rotating ring is connected to the propulsion shaft with a clamp that drive radially the rotating case provided in 316 stainless steel with insert in Graphite Resin (G2), Graphite Antimony (G3), Silicon Carbide (S1) or Tungsten Carbide (T1). Thanks to SpliTEM® technology, the sliding rings (stationary and rotating), made in two halves, allow maintenance to be carried out directly in the water and/or with the propeller shaft in position, with an significant cost saving. The pneumatic barrier ring Watershield®, integrated into the stationary flange, makes the MTM903 the most technologically advanced product in the propeller shaft seals market. The integrated preload system guarantees an extremely simple installation that does not require any particular specialization.
