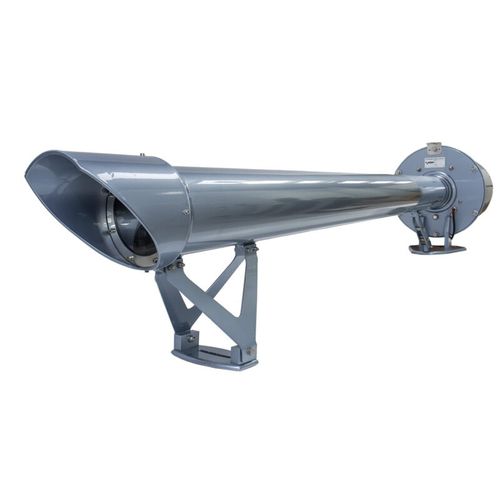

Beacon signalling light MEL500L

LEDwhitegreen

The MEL500L Port Entry Light (PEL) is a sector leading light of maximum resolution between its colour sectors, made up of a LED light source, able to provide a day range of up to 5 nm and a nominal night range of 23 nm. The main advantage of this beacon is its accuracy between its colour sector boundaries (<0.05°). Light emission generates an unidirectional beam in three colours, with a horizontal divergence between 1° and 10°. Colour sector configuration is expressly done for every case. The use of high-intensity LED diodes ensures minimum consumption, maintenance free. The MEL500L light is designed according to IALA Recommendations and Guidelines, providing a great aid to the navigator to know its position in the channel. As an option, it can be delivered with oscillating boundaries, thus offering accurate information on their lateral distance from the leading axis. Technical specifications State-of-the-art LED technology Custom-made configurable colour sectors Maximum definition between its boundaries (<0,05º) High-efficiency luminous system of minimum consumption (70W) Stabilised against vibrations Day range Up to 5 nm Nominal night range Up to 23 nm (T=0.74) Beam width From 1º to 10º Average operation lifetime Over 25 years Stainless-steel and marine-aluminium housing With polyurethane finish Double RS-232 serial port for setting adjustments By PC and remote monitoring system Anti-humidity device to avoid condensation Oscillating boundaries as an option Easy alignment by gunsight
