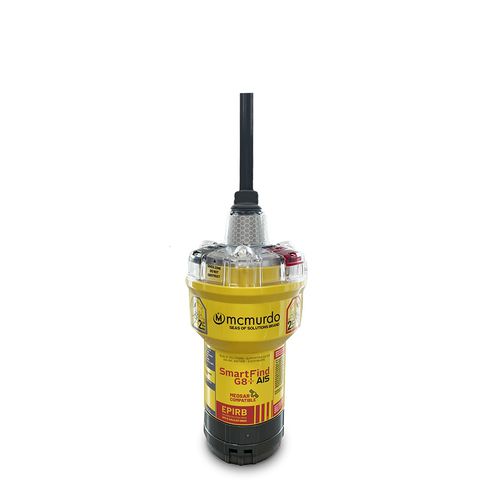

Lifeboat EPIRB SmartFind G8 PLUS

for shipsfor professional boatssatellite

Product overview
The SmartFind G8 PLUS AIS EPIRB by McMurdo is a multi-GNSS 406 MHz satellite distress beacon incorporating AIS localisation and an infrared night-vision optical signal to aid survivor detection in low-light conditions. Ruggedised for commercial maritime operations and optimised for MEOSAR, it is available in manual and auto (float-free) release variants.

Operating Frequencies

• 406 MHz
• 121.5 MHz
• Multi GNSS
• AIS

Features

• Integrated AIS for localized surface rescue
• Multi-GNSS positioning including Galileo & GPS
• Compliant with IMO MSC.471(101)
• Infrared (night-vision) optical strobe for low-light detection
• Accidental activation protection
• Rugged construction for commercial maritime environments
• Hands-free carry strap
• 360° visible strobe
• Supplied with safety bracket
• 10-year battery shelf life
• Sealed Electronic Unit (SEU)
• Sealed Battery Unit (SBU)
• Manual and automatic release options

Specifications — 406 MHZ TRANSMITTER
Frequency: 406.040 MHz
Power output: 5 W nominal
Modulation: BPSK (16K0G1D)

Specifications — 121.5 MHZ TRANSMITTER
Frequency: 121.5 MHz
Power output: 70 mW nominal
Modulation: AM swept tone (3K20A3X)

Specifications — AIS TRANSMITTER
Frequencies: 161.975 MHz (AIS1); 162.025 MHz (AIS2)
Power output: 1 W EIRP
Modulation: GMSK/FM (16K0GXW)

Specifications — GNSS RECEIVER
Constellations: GPS, Galileo
Frequencies: 1575.42 MHz (GPS, Galileo)
Sensitivity: -167 dBm minimum
Satellites tracked: 92 channels

OPTICAL HOMER
Day and night-vision strobe: 3 high-intensity LEDs
Light output: 0.75 cd / 2.5 mW/sr minimum
Flash rate: 23 flashes per minute

BATTERY
Type: Lithium iron disulphide
Operating life: 48 hours minimum
Shelf life: 10 years from date of manufacture

ENVIRONMENT
Operating temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Storage temperature: -30 °C to +70 °C (-22 °F to +158 °F)
Automatic release depth: 4 m maximum

DIMENSIONS (EPIRB)
Weight: 710 g
Height/Width/Depth: 425 x 105 x 105 mm (including antenna)
Length of antenna: 225 mm

DIMENSIONS (MANUAL BRACKET)
Weight: 110 g
Height/Width/Depth: 135 x 125 x 125 mm

DIMENSIONS (FLOAT FREE ENCLOSURE)
Weight: 1075 g
Height/Width/Depth: 415 x 135 x 135 mm

STANDARDS
COSPAS‑SARSAT: C/S T.001; C/S T.007
Europe/UK: MED / UKCM
USA: USCG & FCC – Pending
International standards: IEC 61097‑2 ED4, IEC 60945 incl. Corrigendum1 (Portable), IEC 61108‑1 (GNSS variant), RTCM 11000.5, ITU‑R M.1371‑5, Industry Canada RSS‑287, AS/NZS 4280.1
IMO regulations: MSC.471(101): A.662(16); A.694(17); A.814(19)

PART NUMBERS
SmartFind G8 PLUS AIS EPIRB – Manual: 23-002-001A
SmartFind G8 PLUS AIS EPIRB – Auto: 23-002-501A

Notes
McMurdo recommends a 5‑year health check by an approved service agent. For vessels requiring shore-based maintenance, battery health checks or replacements should follow flag Administration requirements and must not exceed 5 years.

Technical specifications

• Product: SmartFind G8 PLUS AIS EPIRB
• Brand: McMurdo
• 406 MHz transmitter: 5 W nominal, 406.040 MHz, BPSK
• 121.5 MHz transmitter: 70 mW nominal, AM swept tone
• AIS: 161.975 / 162.025 MHz, 1 W EIRP, GMSK/FM
• GNSS: GPS & Galileo, 92 channels, -167 dBm sensitivity
• Optical: Infrared night-vision strobe, 3 LEDs, 23 flashes/min
• Battery: Lithium iron disulphide, 48 h minimum operating life, 10-year shelf life
• Operating temp: -20 °C to +55 °C
• Dimensions (EPIRB): 425 x 105 x 105 mm, 710 g
• Auto/manual release options; category 1 (auto float-free) or category 2 (manual bracket)
• Complies with COSPAS‑SARSAT and multiple international maritime standards and IMO regulations
