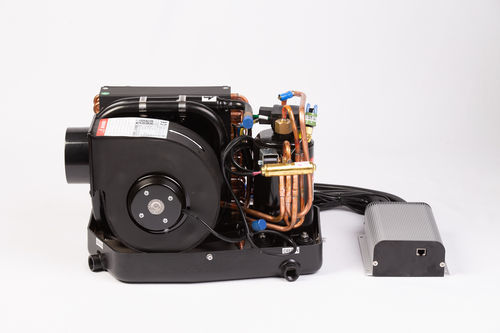

Boat air conditioner SDC 12-7000

stand-alone

ALL IN ONE COMPACT. EFFICIENT. SMART. AND WHISPER QUIET... EVERYTHING YOU NEED IN ONE BOX! For the quick and easy installation of a 12V battery-supplied air conditioning unit! At the heart of the system is a 12V 100Ah LiFePO4 battery, providing up to 4-6 hours of autonomous operation for the 7,000 BTU unit – without the need for shore power or a generator. A SMART Display is available as an optional add-on, offering a modern and user-friendly interface for system control. With its built-in ECO mode, you can achieve up to 40% energy savings, making the system even more efficient for off-grid and battery-powered applications. And if the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real teak or oak grilles – ensuring perfect visual harmony and a premium look. Specifications of The A/C Unit - Power Supply: DC12V - Cooling Capacity: 7000 BTU/h - Rated Power: 0.45 kW - Rated Current NORMAL mode: 20-33 A - Rated Current ECO mode: 12-18 A - Heating Capacity: 8000 BTU/h - Rated Power: 0.54 kW - Rated Current NORMAL mode: 22-38 A - Rated Current ECO mode: 14-23 A - Seawater Flow: 0.55 m³/h - Air Flow: 350 m³/h - Dehumidification: 0.8 L/h - Noise Level: 50 dB(A) - Dimensions (WxHxD): 400 x 280 x 240 mm - Weight: 18 kg - Refrigerant: R134A - Air Duct Diameter: 100 mm - Sea Water Pipe Diameter: 16 mm Standard package includes: - 1x 12V 20A battery charger - 1x 3 meters thermally insulated air duct - 1x main switch - 1x 40A fuse - 1x fuse box - 2x 2.5 meter 25mm² power supply cables with cable lugs - 1x 200×300 mm plastic return air grille - 1x 100×100 mm plastic supply air grilles - 1x 3 meters Armoflex seawater pipe - 7x W4 16-25 stainless steel hose clamps - 1x 1/2” seawater discharge fitting - 2x 1/2” male hose connector - 1x 1/2” female hose connector - 1x 1/2” ball valve - 1x 1/2” seawater intake fitting - 1x MBC AMPS01 seawater strainer - 1x 12V LiFePo4 100 Ah Battery - 1x MBC DC 5612E brushless circulation pump - 1x MBC SDC 1207 air conditioning unit (7000 BTU, 12V DC) Optional Packs: - Woodline Edition: Includes real TEAK or OAK grilles for premium look and harmony with boat interiors. - Smart Pack: Optional SMART display for modern, user-friendly control and up to 40% energy savings with ECO mode. Typical installation includes: - Scoop type Thru-Hull - Ball valve - Sea Water Strainer - Sea water pump - A/C unit - Return Air Grille - Flexible duct - Duct Ring - Transition Box - Supply Air Grille - Control Box - Starting Booster Outlet - Sea Water Outlet - Drain Outlet Compatible with Most Thermostats - Professional installation is recommended for efficient and safe operation. Characteristics / Technical Specifications: - Power Supply: DC12V - Cooling Capacity: 7000 BTU/h - Heating Capacity: 8000 BTU/h - Rated Power (Cooling): 0.45 kW - Rated Power (Heating): 0.54 kW - Rated Current (Normal/ECO): 20-33A / 12-18A (Cooling), 22-38A / 14-23A (Heating) - Seawater Flow: 0.55 m³/h - Air Flow: 350 m³/h - Dehumidification: 0.8 L/h - Noise Level: 50 dB(A) - Dimensions (WxHxD): 400 x 280 x 240 mm - Weight: 18 kg - Refrigerant: R134A - Air Duct Diameter: 100 mm - Sea Water Pipe Diameter: 16 mm
