Dock pile guide

steel

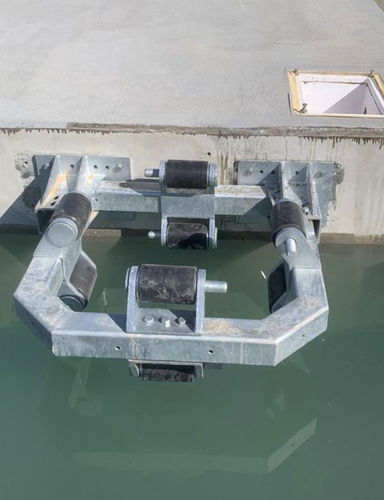

This Marinova pile guide bracket provides an articulated connection between floating concrete pontoons or breakwaters and vertical piles. It allows controlled vertical movement to accommodate tides and water-level variations while efficiently transferring horizontal loads in semi-exposed to exposed marine environments.

Key features

• Pile guiding and anchoring bracket for floating structures
• Suitable for heavy concrete pontoons and floating breakwaters
• Permits controlled vertical movement to follow tidal range
• High-load elastomer rollers to reduce friction and wear
• Hot-dip galvanized steel finish for long-term marine corrosion protection
• Engineered for semi-exposed to exposed marine conditions

Typical applications

• Floating concrete pontoon systems
• Floating breakwaters
• Main marina walkways and berthing structures
• High-load marine infrastructure requiring pile guidance

Technical specifications

• Brand: Marinova
• Commercial name: Pile brackets (Guides)
• Design load: 150 kN (15 t)
• Material / finish: Hot-dip galvanized steel for long-term corrosion protection
• Guidance elements: Multiple elastomer roller elements to reduce friction and minimise wear
• Function: Articulated connection allowing controlled vertical movement and efficient horizontal load transfer
• Suitable environment: Semi-exposed to exposed marine conditions (permanent marine installations)
• Shipping: Free Shipping (as listed on product page)
