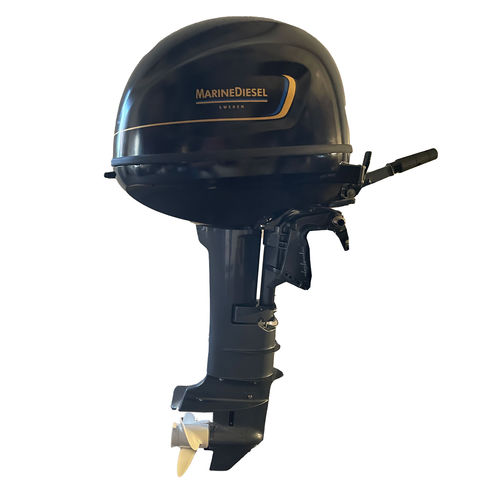

Outboard engine D14

dieselcommercialwater-cooled

Experience unmatched power as the D14 delivers exceptional torque, allowing it to effortlessly handle heavy loads at low RPM while maintaining modest fuel consumption for extended operations. With performance comparable to an outboard, the D14 redefines efficiency on the water. Designed with commercial applications in mind, the D14 is the ideal choice for demanding environments such as the oil and gas industry, aquaculture, and protected areas. Its robust construction ensures reliability in potentially hazardous settings. Benefit from the simplicity of the D14, requiring minimal maintenance and offering cost-effective operation. Invest in the future of marine power with MDPowertrain’s D14 – where innovation meets reliability. - Power: 10.4 KW / 14 HP at 3,600 RPM - Engine type: 1 Cyl. Monoblock - Displacement: 500 CC - Idle speed: 1 000 RPM - Bore X Stroke: 95 X 75 MM - Cooling System: Water Cooled - Emergency Stop: Lanyard - Engine Oil Capacity: 1.6 L CF Grade 15w/40 (summer), 10W/30 (winter) - Gear Box Oil Capacity: 0.25 L - Gear Type: Dog Clutch - Fuel Type: Diesel EN 590 + DMA / DMX - Fuel Injection System: Common Rail Direct Injection - Starter: Electric - Exhaust: Underwater through hub - Control: Tiller/Remote w steering - Standard Propeller: 12' 3 blade – builtin damper - Dimensions: 1 018 X 488 X 1 198 mm - Weight (Lightest Version): 75 kg (Dry) - Length of shaft: 17" and 22" - Certifications: Solas 74 Reg. III [CE], RCD - Long service life - Low maintenance - Greater reliability - Long working hours - 4 LPH at full load - Lower fueling stops - One type of fuel onboard (Diesel) - Lower risk of fire due to the lower flammability of the diesel fuel - Explosion proof - No need to store fuel on board - Lower fuel consumption and costs - Maximized working hours - Lower cost per operating hour
