Outboard small boat 12 R

openfor fishingaluminum

Product overview

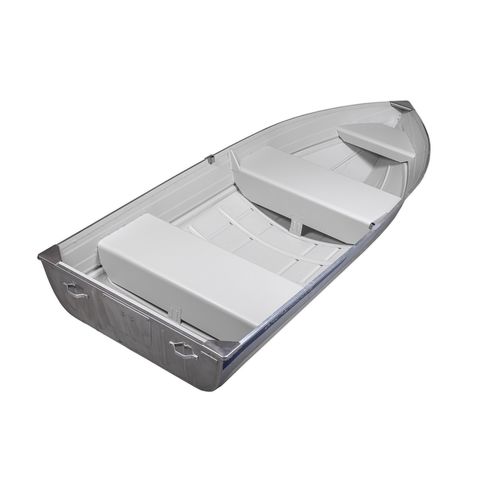

The aluminium Marine 12 R is the smallest model in the rowing series. It features three keels and a wide spacing between benches, providing stable straight tracking and comfortable rowing for up to four people. The boat accepts small outboard motors (up to 8 HP) and can be transported on a car roof with an appropriate carrier.

Technical data

• Length: 3.70 m
• Beam: 1.39 m
• Height: 0.55 m
• Weight: 56 kg
• Max. load capacity: 350 kg
• Persons capacity: 4
• Maximum engine: 8 HP (max engine weight 40 kg)
• Transom (outboards): S
• Bottom aluminium thickness: 1.2 mm
• Side aluminium thickness: 1.2 mm
• Number of ribs: 5
• Number of keels: 7
• CE category: D

Standard accessories

• Inside colour: Hempel light grey primer
• Outside colour: Short blue stripe
• 2 oar lock holders: Std.
• Transom drain plug: Std.
• Mooring bow eye: Std.
• Cross riveted benches: Filled with polystyrene
• Reinforcing plate from aluminium on transom: Std.
• Keels for straight ride: Std.
• Rounded bow corner for easy boat transport: Std.
• Rounded rear corner for easy transport: Std.
• Handles transom, 2 pcs: Std.

Optional accessories

• LK-07210 — Wooden oar 210 cm Sea Side, 1 pc
• NX-NPN4886 — Mounting kit for car top holder (for Steel 32x22 mm roof carriers)
• ME-1930 — Railing - holder AL 30 cm for all Marine boats
• CB-B0220 — Trailer for a small boat till 4m
• ME-1348 — Foam set for seats of 10M, 12M and 370S boats
• NX-1732AERO — Set of 4 pcs holders to Alu aero roof carriers
• L-MAS1020 — Galvanic anode 200g, 110x35x15
• OS-47.368.09 — Transport wheels plastic with arrest - 1 pair
• AR-915031 — Rod holder black - rotating
• LA-50290 — Alu oar 205 cm

Use & transport
Designed primarily for rowing and light inshore work, the Marine 12 R is suitable for fishing, utility transfers and shore operations. Its light weight and rounded corners facilitate handling and roof transport; use appropriate roof carriers or the optional trailer for longer transfers.
