Outboard small boat 500 Fish SC DLX

openside consolefishing

Description

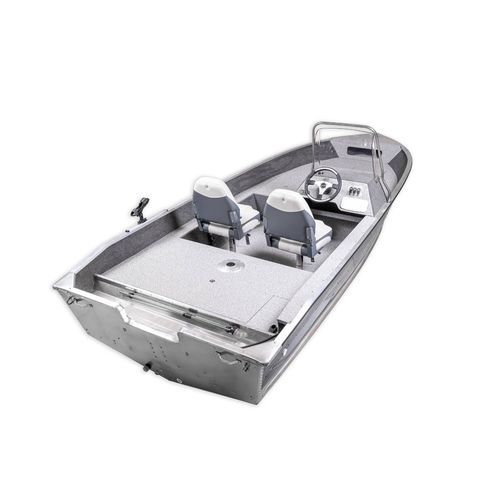

The lightweight aluminum fishing boat Marine 500 Fish SC DLX is an upgraded version of the classic 500 Fish SC with increased storage volume and a dedicated upholstered side steering console. Raised decks at bow and stern, an open-side layout and integrated seats provide ergonomic working and fishing positions. Suitable for coastal and inland fishing operations, the hull is configured for an outboard engine up to 60 HP (transom L) and carries 5–6 persons.

Technical data
Length: 5,00 m
Beam: 1,86 m
Height: 0,76 m
Weight: 328 kg
Max. payload: 535 kg
Max. persons: 5/6
Max. engine power: 60 HP
Max. engine weight: 125 kg
Transom (outboards): L
Aluminium thickness - Bottom: 2,0 mm
Aluminium thickness - Side: 1,6 mm
Number of ribs: 13
Number of keels: 5
Category: C/D

Standard accessories

• Inside colour: Hempel light grey primer
• Outside colour: FISH DLX design
• Upholstered side steering console DLX III 500 with plexi shield and stainless steel railing
• Waterproof box, shelf for items and stainless steel drink holder
• 2 upholstered seats with Marine logo, seat bases and adjustable pedestals
• Seat bases
• Marine carpet for vertical parts
• Water-ski tow eyes, 2 pcs
• Rail with black rod holder with rolling base
• Floormats
• Bow plate upholstered for bow electric engine mounting
• Bow storage box for anchor
• Bow and rear cover with storage space, vinyl covered
• Lifewell with aerator
• Electroset to the water tank with aeration
• Horizontal holder for three rods
• Double socket 1x12V and 2x5V USB 2.0
• Navigation light with connection and switch
• Battery box
• Plastic hose from the rear battery box to the bow
• Automatic bilge pump with connection and switch

Optional accessories

• OS-40.110.19 - Cleat aluminium 190 mm
• ME-1387 - Fishing rod box for 500 Fish, Fish SC, Fish SC DLX
• AP-69416 - Seat lock for plug-in pedestals
• L-MAS1020 - Galvanic anode 200 g, 110x35x15
• PL-29398 - Ladder SST 3 steps, 190x565 mm
• AR-915321 - Railblaza 500 mm
• AP-69384 - Seat pedestal - Plug-in 380 mm for fishing seat
• AR-915031 - Rod holder black - rotating
• GW-500FISHSCDLXCERNA - 500 Fish SC DLX Design DLX Black (design option)
• ME-1486 - Mooring canvas for Marine seat NS-76223
• NS-76223 - Upholstery seat new with Marine logo; grey-blue, grey-red or grey-dark grey
• AR-915029 - Railblaza rod holder black
• OS-48.419.50 - Ladder SST 3 step telescopic with swimming platform
• LA-30076 - Bow light green-red
• CB-B0560 - Trailer for a big boat up to 5,4 m
• ME-1421II - Mooring canvas 500 Fish SC DLX
• AP-69189 - Seat pedestal adjustable 635-800 mm (high fish seat)
• OS-48.703.59 - Adjustable pedestal for seat telescopic 350/480 mm
• AR-915002 - Railblaza rod holder base black

Specifications

• Length: 5,00 m
• Beam: 1,86 m
• Height: 0,76 m
• Weight: 328 kg
• Max. payload: 535 kg
• Max. persons: 5/6
• Max. engine power: 60 HP
• Max. engine weight: 125 kg
• Aluminium thickness (bottom/side): 2,0 mm / 1,6 mm
• Number of ribs: 13
• Number of keels: 5
• Category: C/D
