Outboard small boat 530 Family

openside consolerecreational

Overview

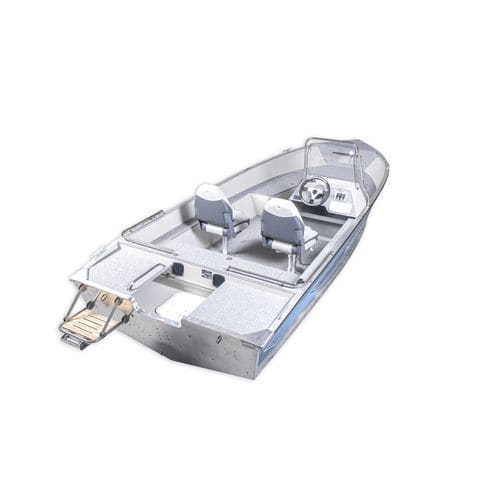

Aluminum family boat Marine 530 Family, length 5.30 m, designed for leisure and water sports. Configurable with central deck and comfortable upholstery to expand sunbathing and seating layout. Category C. Capacity 7 persons; recommended for outboard engines up to 70 HP.

Technical data

• Length overall: 5.30 m
• Beam: 2.02 m
• Height: 0.80 m
• Weight (approx.): 357 kg
• Maximum load: 655 kg
• Maximum persons: 7
• Maximum engine power: 70 HP
• Maximum engine weight: 165 kg
• Transom type: L (for outboards)
• Aluminium thickness – bottom: 2.0 mm
• Aluminium thickness – side: 1.6 mm
• Number of ribs: 13
• Number of keels: 5
• Design category: C

Standard accessories

• Inside colour: Hempel light grey primer
• Outside colour: Blue design Family
• Bow plate with storage
• Front V-shaped and rear benches with storage, vinyl covered
• Floormats
• Console DLX II with steering and plexi shield
• Waterproof box, shelf and drink holder
• 2 upholstery seats with Marine logo (2 colour options)
• Driver seat with adjustable telescopic pedestal and second seat with base and pedestal
• Clamping straps for battery and tank
• 2 rear railings
• Navigation white light 360
• Rear platform
• Automatic bilge pump with switch
• 12V socket with USB
• Low SST railing at rear for water exit
• Aluminium cleats
• 2 water-ski tow eyes
• Stainless ladder 3 steps

Optional accessories (selection)

• Seat base (AP-69186)
• Set of bow and rear cushions for 530 Family grey-black (ME-1360GB)
• Seat pedestal adjustable 440-660 mm (driver/fishing seat) (AP-69188)
• Bimini top – 3-arm, ALU white (OS-46.909.43)
• Railing SST high on rear for water exit (ME-1933)
• Galvanic anode 200 g, 110x35x15 (L-MAS1020)
• Rod holder black rotating (AR-915031)
• Picnic table (AR-801361)
• Central deck 530 Family (ME-1354)
• Mooring canvas for Marine seat NS-76223 (ME-1486)
• Railing side 90 cm for 500/530 models (ME-1911)
• Mooring canvas 530 Family with bathing platform and front railing (ME-1449SR)
• Upholstery seat with Marine logo; colour options (NS-76223)
• Bow light green-red (LA-30076)
• Trailer for a big boat up to 5.4 m (CB-B0560)

Technical specifications

• Length: 5.30 m
• Beam: 2.02 m
• Height: 0.80 m
• Weight: 357 kg
• Max. load: 655 kg
• Max. persons: 7
• Max. engine power: 70 HP
• Max. engine weight: 165 kg
• Transom: L
• Aluminium thickness (bottom/side): 2.0 mm / 1.6 mm
• Ribs: 13
• Keels: 5
• Category: C
