Work boat 500 F HD

outboardaluminumrigid

Product overview

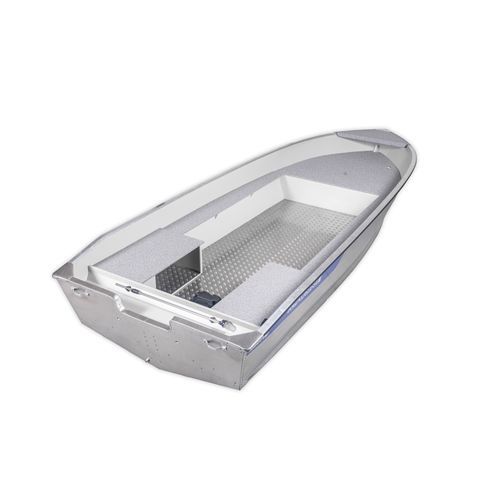

The Marine 500 F HD is a 5.00 m aluminum work boat designed for operations in shallow and confined waters. Its reinforced yet lightweight construction delivers stable handling and easy manoeuvrability, making it suitable for professional uses such as firefighting, rescue and utility tasks. The very shallow draft improves access in flooded or shallow areas.

Technical data

• Length: 5.00 m
• Beam: 1.86 m
• Height: 0.75 m
• Weight (empty): 275 kg
• Max. payload: 940 kg
• Persons capacity: 7/10
• Max. engine: 60 HP
• Max. engine weight: 125 kg
• Transom (outboards): L
• Aluminium thickness (bottom): 2.0 mm
• Aluminium thickness (side): 1.6 mm
• Number of ribs: 13
• Number of keels: 5
• Category: C/D

Standard accessories

• Inside colour: Hempel light grey primer
• Outside colour: Short blue stripe
• Mooring bow eye: Std.
• Transom drain plug: Std.
• Bow and rear benches: Filled with polystyrene
• Side benches: Filled with floating foam
• Bow plate upholstered for bow electric engine mounting: Std.
• Bow deck with storage space: Std.
• Aluminium reinforcing plate on transom: Std.
• Floormats: Std.
• Additional floating foam for increased load capacity: Std.
• Battery box: Std.
• Navigation white light with wiring and switch: Std.
• Rounded rear corner: Std.
• Transom handles, 2 pcs: Std.

Optional accessories

• Seat base (AP-69186)
• Cleat aluminium 190 mm (OS-40.110.19)
• Bimini top - 3-arm, ALU blue (OS-46.909.52)
• Holder for drinks in console or deck - stainless steel (L-EZ41160A)
• Seat pedestal adjustable 440 - 660 mm (driver/fishing seat) (AP-69188)
• White Rubber Fender - price per 1m installed (ME-1744)
• Mooring canvas 500 S, U, Fish, F HD (ME-1419)
• Side benches for 500 F HD - 1 pair (ME-1382)
• Seat lock for plug in pedestals (AP-69416)
• Galvanic anode 200g, 110x35x15 (L-MAS1020)
• Ladder SST 3 steps, 190x565 mm (PL-29398)
• Plug 12V with wiring (PL-27471)
• Seat pedestal - Plug in 380 mm for fishing seat (AP-69384)
• Automatic bilge pump with connection and switch (ME-1812)
• Seat pedestal - Plug in 330 mm for driver seat (AP-69383)
• Mooring canvas for Marine seat NS-76223 (ME-1486)
• Water ski tow eyes, 2 pcs (ME-1704)
• Holder for drinks on seats NS-75109GC/GB and AP-69455 - plastic (NS-75135)
• Radar Arch SST for 500 FHD (ME-1951)
• Railing (side 1 pc) for 500 and 530 models - 90 cm (ME-1911)
• Double socket 1x12V and 2x5V USB 2.0 (OS-14.516.02)
• Alu paddle 155 cm (LA-50240)
• Upholstery seat new with Marine logo; multiple colours (NS-76223)
• Bow light green-red (LA-30076)
• Trailer for a big boat till 5.4 m (CB-B0560)
• XL transom for FHD boats (ready for JET outboards) (ME-1960)
• Wrapped Alu bow deck for 500 FHD (ME-1384)
• Wrapped Alu floor for 500 F HD (ME-1383)

Specifications

• Brand: Marine
• Model: 500 F HD
• Length: 5.00 m
• Beam: 1.86 m
• Height: 0.75 m
• Weight (empty): 275 kg
• Max. payload: 940 kg
• Persons capacity: 7/10
• Max. engine: 60 HP
• Max. engine weight: 125 kg
• Aluminium thickness bottom/side: 2.0 mm / 1.6 mm
• Ribs / Keels: 13 / 5
• CE category: C/D
