Boat indicator MD67RDI
for shipsrudder angleanalog

boat indicator
boat indicator
boat indicator
boat indicator
boat indicator
Add to favorites
Compare this product


Characteristics

Application domain
for boats, for ships
Type
rudder angle
Display
analog

Description

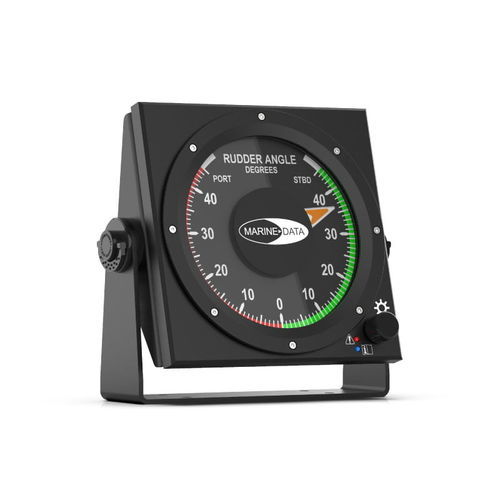

The MD67RDI is a weatherproof, NMEA-based Rudder Angle Indicator. Housed in a robust, compact aluminium enclosure which is fully sealed to IEC 60945 Exposed Area Classification for external or internal use, and is ideal for any vessel. The MD67RDI provides a clear and easy to read 118 mm diameter analogue display graduated in 1 degree increments. Rudder deflection range: Up to 40 degrees to Port and Starboard. It features a tough polycarbonate faceplate and a rotary encoder control for varying the background and pointer illumination. This unit may be either bulkhead or panel mounted. Finished in Jet Black (RAL 9005) Fine-texture Powder Coat to complement other marine navigation equipment. The MD67RDI from Marine Data: flexible in application, easy to install and simple to maintain. FEATURES Weatherproof Marinised Rudder Angle Indicator Clear and Easily Readable Dial Display Displays Rudder Angle up to 40° Port and Starboard Accepts Digital RS422 NMEA 0183 (RSA) data from a Rudder Angle Transmitter Bulkhead or Panel Mount Options Rotary Dimmer with Push Control Fully sealed to IEC 60945 Exposed Area Classification Wheelmark Approved when installed as part of a Marine Data Rudder Angle Indication System APPLICATIONS External use on a seagoing vessel Used to display RSA Rudder Sensor Angle Data transmitted from marine equipment compatible with the NMEA 0183 data protocol Two units may be used to display dual rudder positions
