Exterior lighting spotlight VALAN

outdoornauticalfor boat

Overview

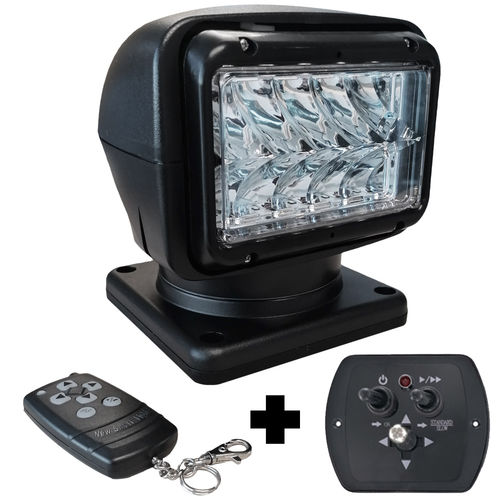

Black LED searchlight valan 36W intended for marine search and signalling tasks. Compact unit with aluminium and ABS body and PC lens. Continuous horizontal rotation and wide vertical sweep suitable for vessel deck or fixed installations.

Main features

• Low power consumption: 36W
• Luminous intensity: 460,000 cd
• Beam angle: 8° for long-range visibility
• Visibility/beam span: 1000 m (3280 ft)
• Lighting color: Cool white 5700K

Power & supply
Power supply: 12 or 24 VDC. Operating input voltage range 10-30 VDC as per specification sheet.

Controls & accessories

• 1 wireless remote (battery included) with dual speed mode (fast/slow) — not waterproof
• 1 wired remote with 5 m cable

Performance & environment
Waterproof ratings: IP56 and IP68. Operating temperature: -30°C to +70°C. Vibration resistant. Horizontal rotation: continuous 360°. Vertical sweep: +65° / -65°.

Multimedia
Promotional video available.

Technical specifications

• Power consumption: 36W
• Luminous intensity: 460,000 cd
• Input voltage: 10-30 VDC (spec sheet); compatible with 12V/24V supplies
• Beam angle: 8°
• Visibility/beam span: 1000 m (3280 ft)
• Materials: Aluminium / ABS / PC
• Lighting color: Cool white (5700K)
• Waterproof rating: IP56 & IP68
• Weight: 2.4 kg (5.3 lb)
• Dimensions: 182 x 193 x H 190 mm (7.16 x 7.6 x 7.5 in)
• Remote controls: 1 wireless + 1 wired (wired remote cable: 5 m)
• Wiring cable length: 0.1 m
• Warranty: 2 years
• Certification: EN60945 (no interference with AIS & VHF)
• Operating temperature range: -30°C to +70°C
• Rotation: Horizontal 360° continuous; Vertical +65° / -65°
