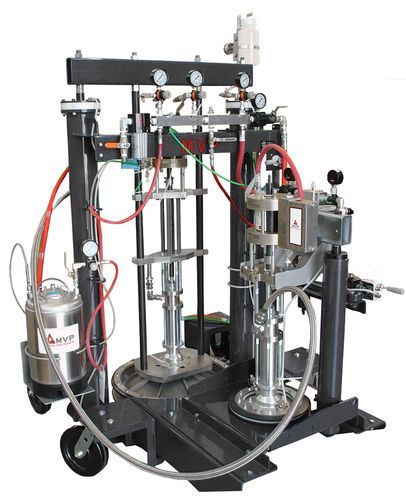

Methacrylate adhesive spraying machine PATRIOT™ 10:1 LOW-FLOW
mobileshipyard

methacrylate adhesive spraying machine
methacrylate adhesive spraying machine
methacrylate adhesive spraying machine
Add to favorites
Compare this product

Characteristics

Sprayed substance
methacrylate adhesive
Type
mobile
Application domain
shipyard

Description

PATRIOT™ 10:1 55-GALLON LOW-FLOW ADHESIVES SYSTEM Patriot™ Technology: The most accurate & reliable metering system made for methacrylate adhesives bonding materials. Excellent Choice for Robotics Chop Check Fluid Sections Double Acting Piston Pumps No Gear Pumps Rugged Pro Gun Available in Standard & Automatic PATRIOT™ 10:1 5-GALLON ADHESIVES SYSTEM Output Capabilities: 1 lb/min – 4 lbs/min (.452 kgs/min -1.81 kgs/min) Avg. Air Consumption: 25-30 CFM (0.7 – 0.8 m³/min) Activator Percentage: 10% by volume Available Pump Ratio: 23:1 Maxium Air Input Pressure: 100 psi (7 bar) ULTRABOND 10:1 55-GALLON ADHESIVES SYSTEM Output Capabilities: 4 lbs/min – 16 lbs/min (1.8 kgs/min – 7.3 kgs/min) Avg. Air Consumption: 25-30 CFM (0.7 – 0.8 m³/min) Activator Percentage: 10% by volume Available Pump Ratio: 30:1 Maximum Air Input Pressure: 100 psi (7 bar)
