A device used to indicate the present position of the rudder blade, usually fitted in the wheelhouse, bridge wings and engine control room. The Rudder Angle Indication system is separate to the steering system and is for indication only. It consist of following unit
1. Rudder Feed Back Unit
Rudder Feedback Unit reports back information about the position of the rudder to the Rudder position indicator. The rudder feedback unit is installed in such a way that the arm of the feedback unit will accurately follow the rudder arm.
2. Rudder Angle Indicator Display Unit
The electronic Rudder angle Indicator display unit will display the rudder position over arrange of 35 degrees both port and star board side.
A complete installation consists of following components
2.A Rudder feedback unit with connection cable.
3.An connection Rod with ball joints.
1.Supply Voltage: 12VDC or 24VDC Selectable
2.Dimmer Facility for Display Light.
3.PORT and STARBOARD limit indicator LEDs

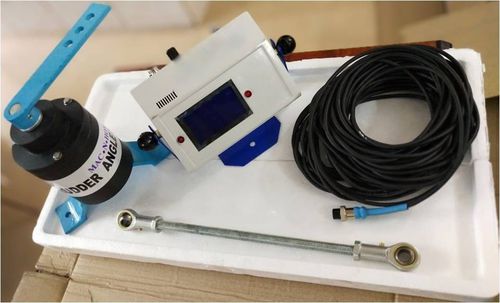

Rudder Angle Display Unit-1 No. Sensor unit with Connection Lever- 1 Set Connection Rod with End Bearings and Bolts- 1 Set. Cable with End crimps for Connections-15 Metres.( Extra length cable on request)
