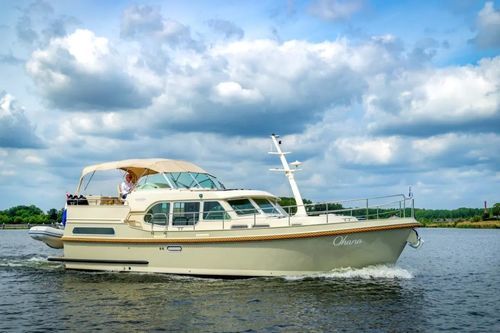

Inboard express cruiser Grand Sturdy 40.1 AC

twin-enginewheelhouse3-cabin

Overview
The Linssen Grand Sturdy 40.1 is offered in AC (aft cabin) and Sedan (open self-draining cockpit) variants. The slim, recognisable profile is retained in the new design. The hull measures ± 12.85 × 4.30 m, providing a high-volume forward section and a spacious interior layout for this size segment. The saloon and galley are on the same level with only one step between them, enabling interaction between crew and guests. Efficiently positioned drawers, cupboards and storage compartments increase convenience on board.

Layout
The folding steps to the forward cabin provide access to a useful cellar/storage space. The forward cabin features a double berth with access on both sides, portholes and deck hatches for light and ventilation, large wardrobes and a drawer under the bed. The head is accessible from the forward cabin and the central corridor so guests in the twin central cabin can also use it; the separate shower is accessible from these areas. The aft cabin offers a freestanding double berth, separate shower and separate head, plus extensive cupboard and drawer storage.

Technical specifications

• Length overall (LOA): ± 12.85 m
• Beam overall: ± 4.30 m
• Draft: ± 1.20 m
• Minimum air draft: ± 2.93 m
• Headroom (forward cabin / saloon / AC): ± 1.97 m / 2.01 m / 1.99 m
• CE classification: B (sea)
• Diesel tank capacity: ± 750 litres
• Fresh water capacity: ± 440 litres
• Holding tank capacity: ± 300 litres
• Weight / displacement: ± 17,000 kg / ± 17 m3
• Engine: 1 × 4-cylinder Yanmar 4JH110 (80.9 kW / 110 HP at 3200 rpm)
• Gearbox: ZF 25-H, ratio 2.8:1
• Alternator: 125A - 12V
