deck floodlight / for ships / for hazardous areas
ST23

Add to MyNauticExpo favorites
Compare this product

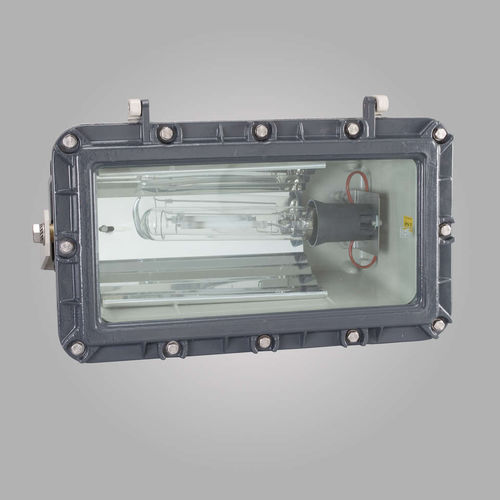

deck floodlight / for ships / for hazardous areas deck floodlight / for ships / for hazardous areas - ST23
{{requestButtons}}

Characteristics

  • Type:

    deck

  • Application domain:

    for ships, for hazardous areas

  • Power:

    250 W, 400 W, 600 W (0 hp)

Description

Part no. 5101001700-xxx
Design According to rules of maritime classification societies and relevant standards
Ex marking II 2G Ex de IIB T3-T4 Gb
II 2D Ex tb IIC T85°C-T210°C Db IP66
Housing Copper-free aluminium with grey polyester paint finish
Cover Borosilicate glass
Mounting Stainless steel bracket, adjustable
Reflector Aluminium anodized
Cable entry 2 cable entries M25 (one Ex-e cable gland, one plugged)
Connection type Rubber cable H07RN-F 3G2.5, 20 meters

Ballast Electromagnetic ballast with capacitor (included)
Wiring Flexible wiring, high temperature resistant
Protection class IP67
Weight 31.0 kg
Light source HST/HIT lamp (not included)
Lamp base E40
Voltage 230 V AC
Frequency 50 Hz or 60 Hz
