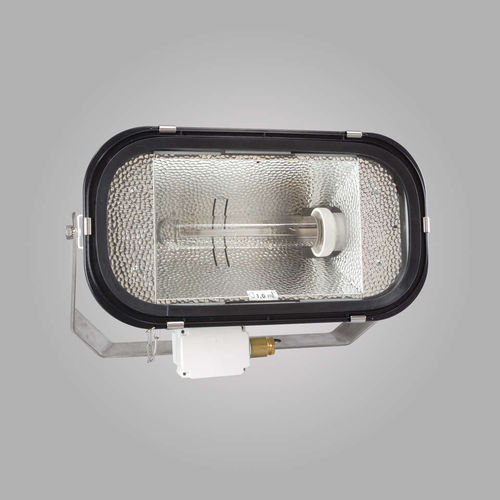

Deck floodlight ST76

for shipsincorporated ballast

Part no. Wide beam 5101000600-000 Narrow beam 5101000600-001 Design According to rules of maritime classification societies and relevant standards Housing Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, powder coated white (RAL9016) Cover Tempered glass, DIN 12150 Mounting Stainless steel bracket, adjustable Reflector Aluminium anodized, wide or narrow beam angle Cable entry Junction box, cable gland brass with earthing insert Wiring Flexible wiring, high temperature resistant Ballast Ballast unit VG76 has to be ordered separately Protection class IP67 Weight 7.3 kg Light source HST/HIT lamp (not included) Lamp base E40 Wattage 1x 250 W, 1x 400 W
