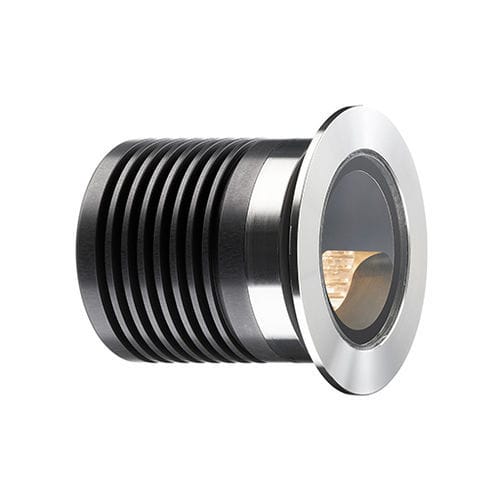

Exterior spotlight LD170

interiorfor boatcockpit

The LD170 is a powerful but compact, recessed wall light designed to produce a low glare uniform floor wash for interior and exterior applications. LD170 is ideal for the illumination of broad steps and pathways with its wide oval beam, integral glare baffle and 20° kick lens which focuses the beam down onto the lit surface. Available LED engines include E3 and F1 which offer colour temperatures between 2200K-5000K, with optional accessories and bezel finishes to choose from. The bezel aesthetic is minimal featuring black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance. - Applications: External, Floor Wash, Steps, Yacht Lighting, (600lm-900lm) Compact+ range, CB Certified - Fixing: Fixing sleeve is bonded into mounting surface. LD170 has two 'O' rings to secure it into the sleeve - LED Information: - E3 LED Engine - Up to 7W @ 500mA (White) - E3-2CH LED Engine: Channel 1 - Up to 7W @ 500mA (White); Channel 2 - Up to 2 x 1.7W @ 500mA (Secondary colour) - F1 LED Engine - Up to 5W @ 500mA (White) - Materials: Bezel: machined 316 Stainless Steel, Polished 316 Stainless Steel, Flamed Bronze, Brass, RAL paint finish. Body: black anodised aluminium - IP Rating: IP67 Technical Specifications: - Product type: Recessed wall light - Light output: 600lm-900lm - Colour temperature: 2200K-5000K - Beam: Wide oval, 20° kick lens - Glare control: Integral glare baffle - Bezel: Black trim glass, no visible fixings - Mounting: Fixing sleeve with two 'O' rings - LED engines: E3, E3-2CH, F1 - Power: Up to 7W (E3), Up to 5W (F1) - Body material: Black anodised aluminium - Bezel finishes: 316 Stainless Steel, Polished 316 Stainless Steel, Flamed Bronze, Brass, RAL paint - Ingress protection: IP67 - Certifications: CB Certified
